ATZ USB4-MM-xM

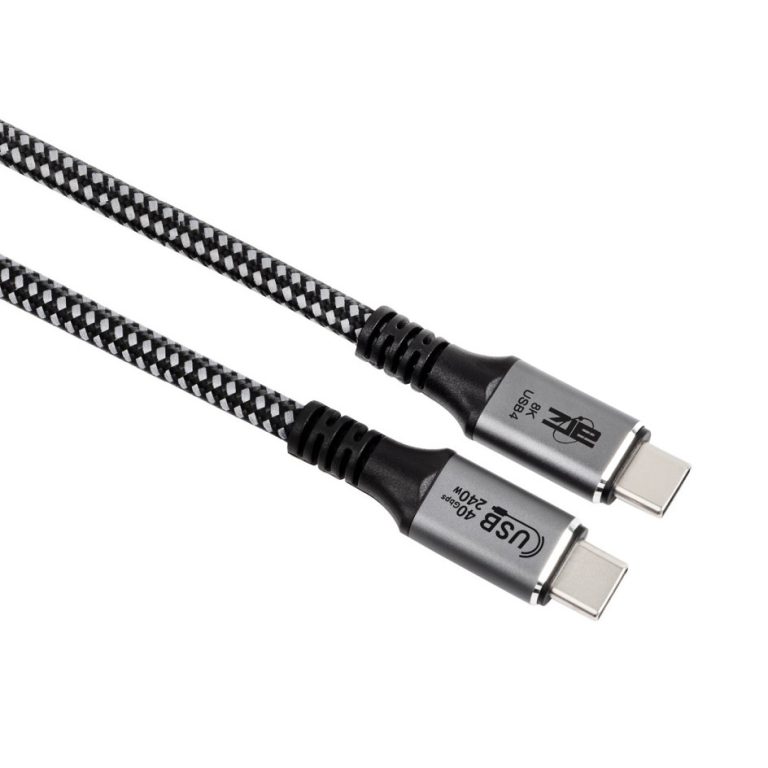

USB4 Gen 3×2 Type-C Male/Male Cable w/EMARK, 40GB Data/Charging 240W 5A/ 8K@60Hz
(1M/1.5M/2M/3M)


Share it:

Future-proof your connectivity using USB4 cable, to support the latest USB4 standard.
Connect this cable with USB4 devices to hosts, to achieve data transfer rates of up to 40Gbps; this USB-C cable is also fully backward compatible with USB-C 3.2, 3.1, and 2.0 speeds and devices, and supports USB-C features such as DisplayPort Alt Mode (DP Alt Mode) and USB Power Delivery (USB-PD), while fully compatible with iPad Pro and MacBook Pro Thunderbolt 3 / 4.

Features:

CompatibilityUSB4 Gen 2×2/3×2 supports up to 40Gbps High-speed data transfer rate/ 240W Charging power, compatible with Thunderbolt 3 / 4.
Backwards compatible to ​USB 3.2, 3.1, 3.0, 2.0 for charging and sync data.
Robust buildStrong Aluminium casing cover, Nickel plating connector; ​with superior construction combining molded durable strain relief & nylon braided over cable for added protection and durability.
PD 240W/5A fast chargeBuild-in Smart E-marker chip automatically detects the device connected and provides optimized outputs with current safety /max charge at 5A capability. Support Extended Power Range (EPR) for up to 240W of max power (28V/36V/48V at 5A), entirely meet ​15W,30W,45W,65W,87W with Quick charge 4.0/3.0 fast charging; based on ​Power Delivery (PD3.1).
40Gbps SuperSpeed+Supports Super-fast SuperSpeed+ data transfer rate of up to 40Gbps for Thunderbolt 3 & 4 or USB Type-C ​devices like Ethernet adapter, USB HUB, Docking Station, eGPU, PCIe, Samsung Portable SSD X5 T7; ​Razer Core and Windows DELL XPS15, Alienware17r4, Lenovo ThinkPad, Pixelbook, Mac book pro15/17/18,Surface Pro etc.
8K Ultra HD Video OutputSupports up to Dual screen at 4K×2K@60Hz or Single screen at 8K@60Hz 5K@60Hz video bandwidth..  ​

Note:
The video function will only work for Thunderbolt 3 & 4 and devices with USB-C ports that supports DisplayPort(DP) Alt ​Mode. 2018 iPad Pro does NOT support video output. ​ ​​ ​

Compatible with Thunderbolt 3 / 4 and USB-C enabled devices like:

MacBook Pro 2020 16”
MacBook Pro (2019/2018/2017/2016) 15.4”
​MacBook Pro (13-inch, 2019, Four Thunderbolt 3 Ports) ​
MacBook Pro (13-inch, 2018, Two Thunderbolt 3 Ports)
​MacBook Pro (13-inch, 2017, Four Thunderbolt 3 Ports) ​
MacBook Pro (13-inch, 2017, Two Thunderbolt 3 Ports) ​
MacBook Pro (13-inch, 2016, Four Thunderbolt 3 Ports) ​
MacBook Pro (13-inch, 2016, Two Thunderbolt 3 Ports)
​MacBook Air 2020/2019/2018, iMac Late 2017, 2018, Mac Pro,iPad Pro 2020,2021,Pro Display XDR, Nintendo Switch, ​Samsung T5 Portable SSD, SanDisk External SSD, Dell XPS13, XPS15, HP Spectre, ​Lenovo Legion Y720, IdeaPad Y900, Miix 720, Thinkpad P50/70, Samsung galaxy Book NP900x5N, ​Notebook Odyssey, Notebook 9in 15in, LG Gram 15Z970, Intel NUC6i7KYK, NUC7i5BNH, ​Sony VAIO S11,mbook Pixel, Dell XPS 13 15,Inspiron 5000,Inspiron 7000, Lenovo ThinkPad X270, HP Envy x360,Pavilion x360,Spectre x360 and other devices. ​

Note: ​​* For Quick charge capability, original USB-C port charger or high quality charger is recommended, which supports QC 4.0/3.0 and USB PD fast charging.  ​

  • Built-in USB C “E-Marker” chip optimizes up to 48V/5A, 240W PD fast charging
  • Cable Rating: USB4 Gen3x2/ Gen2x2
  • Cable type: 22AWG
  • Cable Material: Nylon Mesh braiding over PVC 45P
  • Connector 1: USB4 Type-C Male w/Tinplate + E-marker
  • Connector 2: USB4 Type-C Male w/Tinplate
  • Connector: Nickel plated brass
  • Shell material: Grey Aluminium alloy
  • Cable colour: Black
  • Strain relief: Designed to withstand up to 50,000 bends
  • Support SuperSpeed+ 40Gbps data transfer rate
  • Supports video 8K@60Hz resolutions.
  • Supports Audio and Video Synchronous transmission
  • Length: 1M/1.5M/2M/3M

Electrical Test:
1.100% OPEN SHORT MIS WIRE TEST
2.CONTACT RESISTANCE:3 OHM MAX
3.INSULATION RESISTANCE:5M OHM MIN
4.HI-POT TEST:DC 300V/10ms
5.PASS 40G 240W 8K@60HZ TEST
