Description

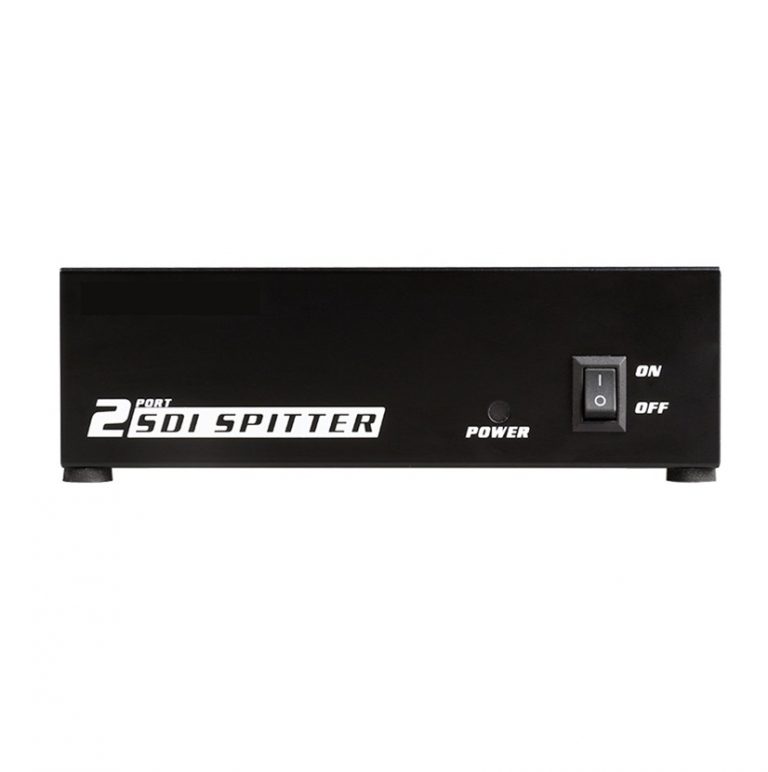

Designed for professional SMPTE video applications, this 3G SDI 1×2 splitter allows you to distribute a single SDI video source to 2 SDI video monitors This splitter supports bit rates up to 2.970Gbps and supports SD-SDI, HD-SDI and 3G-SDI video signals
Features:
- Allows you easily display your work on common HDMI displays
- Supports bit rates up-inch 2.970Gbps
- Supports SD-SDI HD-SDI and 3G-SDI video signals
- Allows you-inch view the original SDI content on an SDI monitor simultaneous with the HDMI display
Additional information
| Weight | 0.38 kg |
|---|---|
| Dimensions | 15 x 10 x 10 cm |

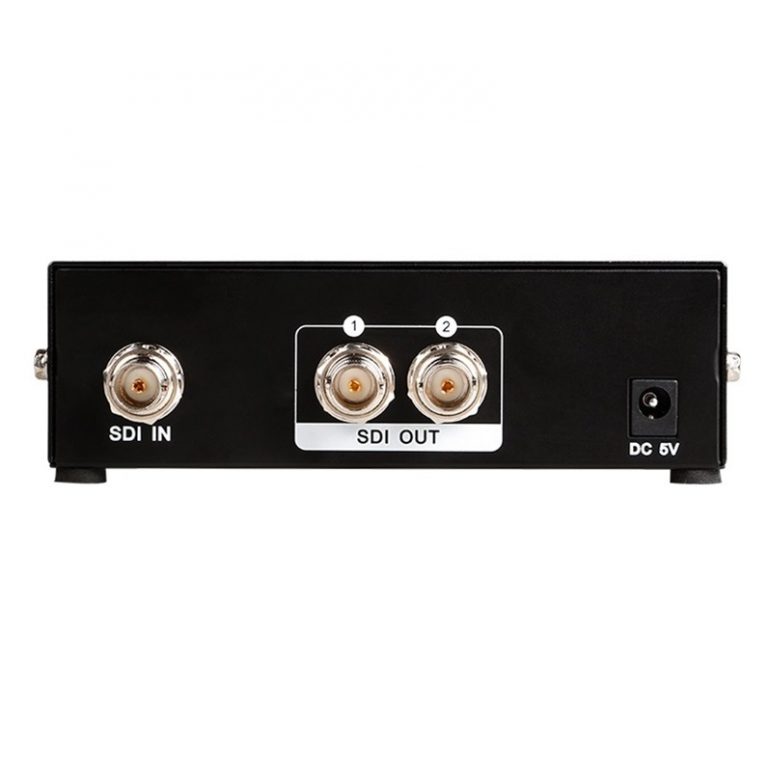

- SDI input: BNC SDI x 1
- SDI output: BNC SDI x 2
- Resolutions: 480i/576i, 720p at 50/60Hz, 1080i at 50/60Hz, 1080p at 24/25/30/50/60Hz
- SDI standards: compatible with SMPTE424M, SMPTE292M and SMPTE 259M
- SDI signal format: SDI-SDI, HD-SDI and 3G-SDI
- Working temperature: 0 to +60°C
- SDI rate: 143-2970MHz
- SDI resistance: 75Ψ
- Input: 1000mA
- Power: 5V DC
- SDI signal output range: 800mVp-p
- SDI extender supports: 400m
- Industrial power: durable and stable power supply
- Dimension: (130 x 100 x 40)mm
- Weight: 330g
