Description
Introduction:

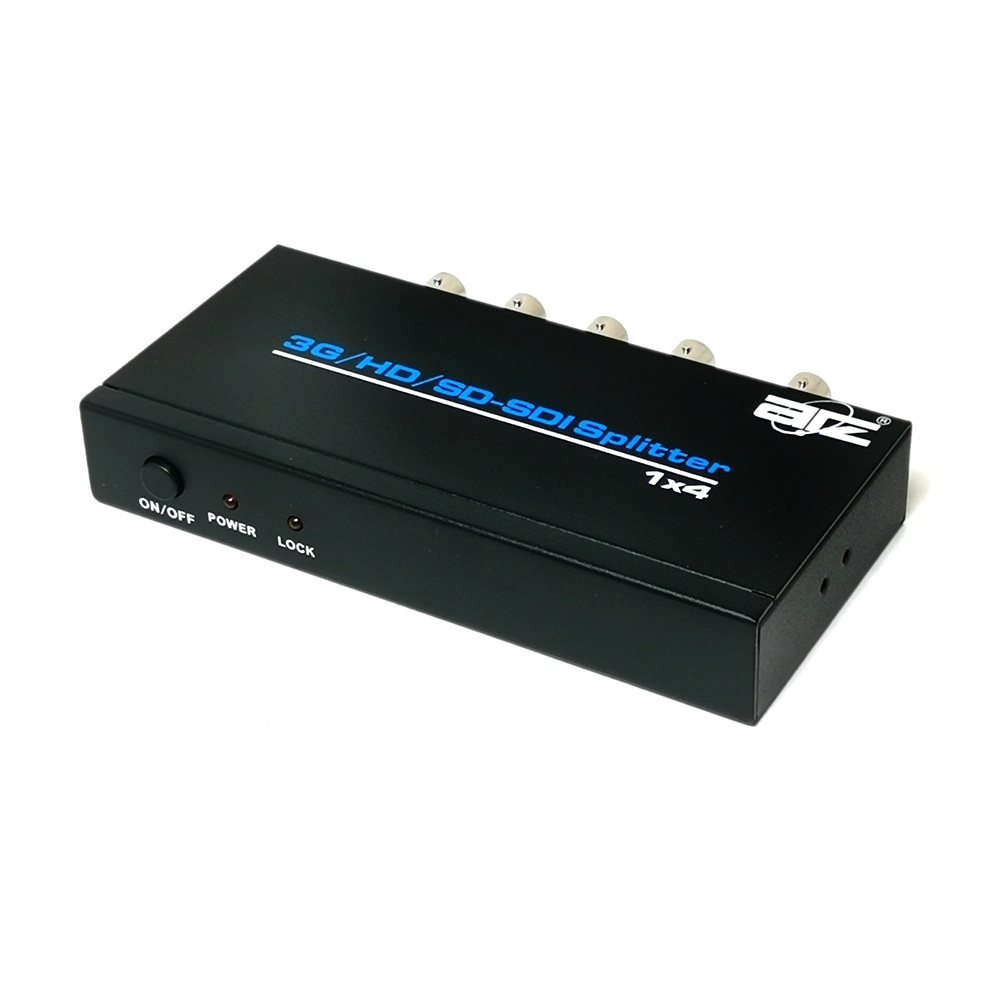

1×4 SDI splitter distributes allows 1 SDI, HD-SDI or 3G-SDI video source to 4 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.
Features:

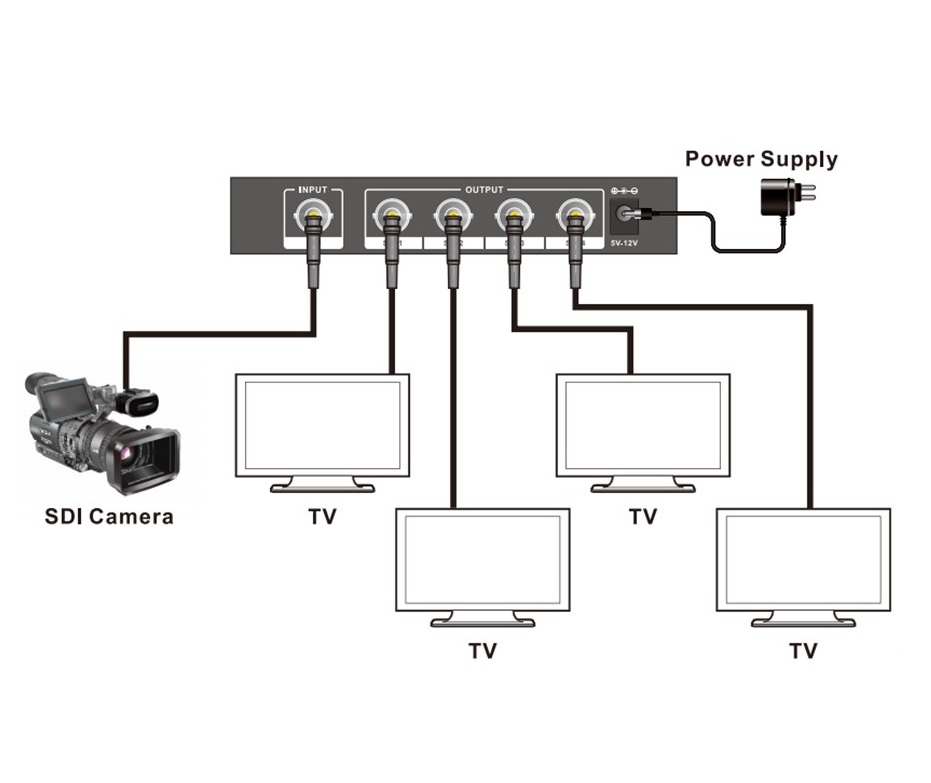

♦ 1 SDI input signal split to 4 SDI sink devices.
♦ Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
♦ Built-in cable equilibrium, clock recovery and drive.
♦ Supports resolutions up to 1920×1080@60Hz.
♦ Supports distance: 300M for SD signals, 200M for HD signals and 100M for 3G signals.
♦ Supports 5-12V wide voltage input.
Application:
- SDI Broadcast room
- CCTV security
- Training showroom
- Video conference
Additional information
| Weight | 0.43 kg |
|---|---|
| Dimensions | 15 x 10 x 10 cm |
- Frequency Bandwidth: 3Gbps

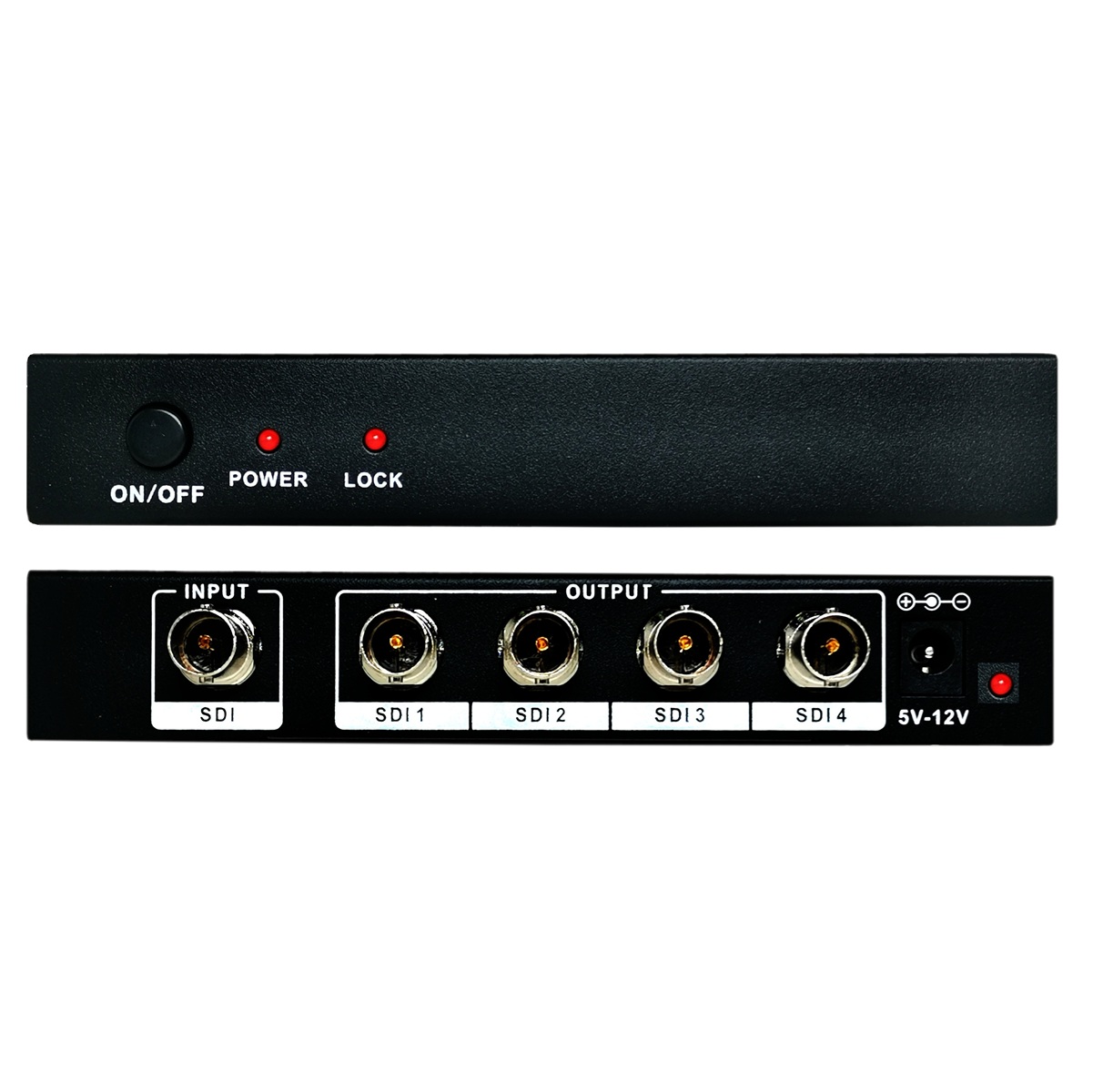

- SDI Splitter Input Ports: 1 x BNC Female input port
- SDI Splitter Output Ports: 4 x BNC Female output ports
- Power Supply: DC 5V 1A
- ESD Protection Human Body Model: ± 8kV (air-gap discharge), ± 4kV (contact discharge)
- Dimensions: (mm) 70(W) X 145 (D) X 25 (H)
- Weight: 350g
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity: 20 ~ 90% RH (Non-condensing)
- Power Consumption (Max): 5W
