SKU: ATZ NET-RJJ-C6 Category:

ATZ NET-RJJ-C6

$1.60

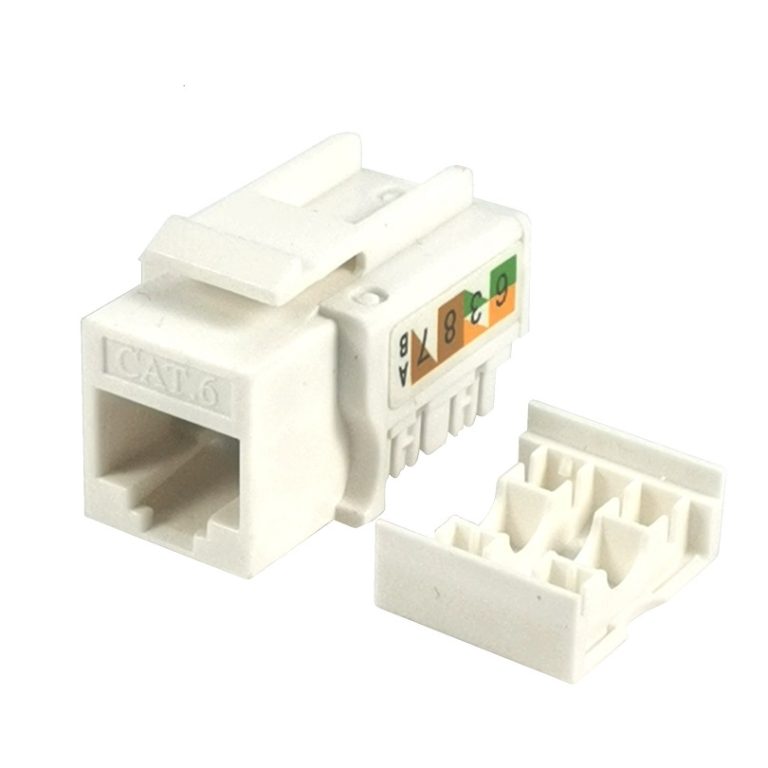

Cat.6 RJ45 Unshielded 90° Keystone Jack Horizontal type, White.


Share it:

Features:

  • Heavy duty Cat6 RJ45 Punch Down Keystone modular Jack for patch panels, surface mountboxes, or wall plates (face plates) with standard keystone ports.
  • Future-proof your network for 10-Gigabit Ethernet with this convenient and cost effective multi-pack punch down keystone for Ethernet.
  • This Keystone jack meets and exceeds ANSI/TIA-568 Standards.
  • Supports T568A and T568B wiring with colour coded 110 blocks. It Supports 110 or Krone dual type termination and accepts 23 or 26AWG solid Ethernet cables.
  • IDC cap protect the blocks and wires against dusts. UL Listed Cat6 jack meets Category 6 performance.
  • Easy to be terminated Low attenuation loss and high return loss.
Weight 0.2 kg
Dimensions 5 x 5 x 5 cm
  • Connector Housing: ABS High-Impact UL94V-0
  • IDC Housing: Polycarbonate High-Impact UL94V-0
  • IDC 110 Contracts: Phosphorus Brass with Nickel plating
  • Termination wire range: 23 AWG – 26 AWG
  • IDC 110 Contacts- Phosphorus Brass plated with Nickel
  • Nose Contacts – Brass plated with a minimum of 50µ”Gold Plating
  • Relief caps for IDC connector included
  • Current Rating: 1.5A
  • Dielectric Withstanding Voltage: 1000V
  • Temperature: -10°C to 60°C
