System Design

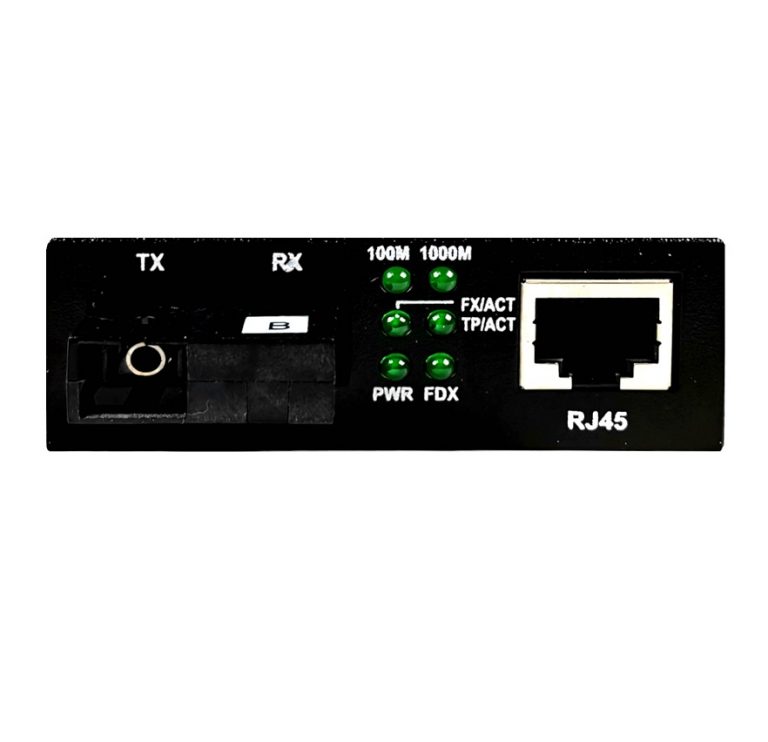

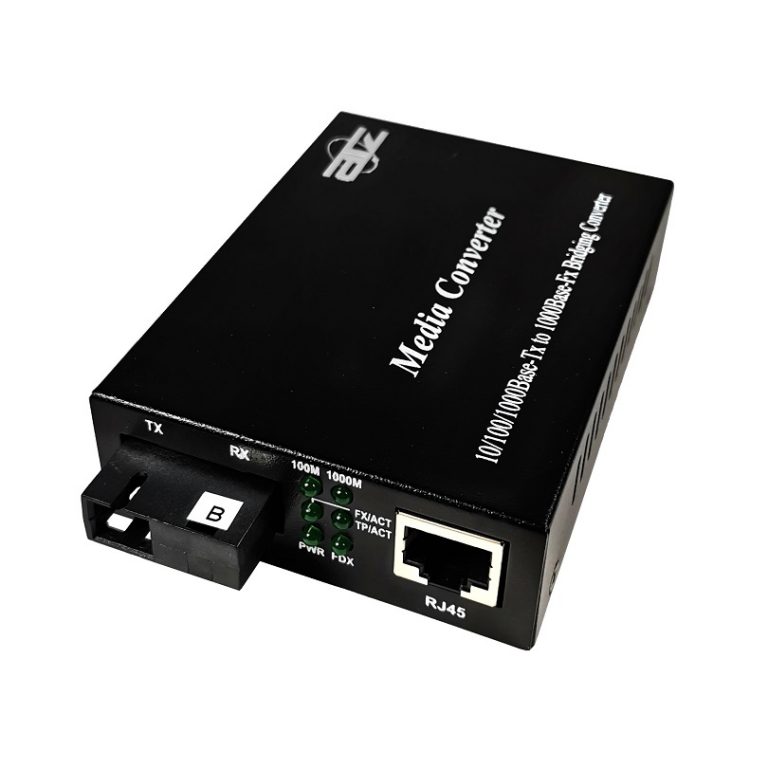

The series 10/100/1000M Ethernet media converter adopts switching technology to fulfill media conversion. Bidirectional (BiDi) has only with one port which uses an integral WDM coupler to transmit and receive signals over a single strand fiber.
It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network connections: 10/100/1000Base-T and 1000Base-SX/LX. It inter-converts electrical signals of 10/100/1000Base-T twisted pairs with optical signals of 1000Base-SX, extending the transmission distance of a network from 100m via copper cables to 20km/40km/60km via fiber optical cables of fiber size: 62.5/125µm, 50/125µm, 9/125µm. It extends the network transmission distance in WDM technology, through bidirectional communications via singlemode single-core fiber cable .
Features:
- Supporting inter-conversion between 10/100/1000Base-TX and 1000Base-SX
- Supporting full-duplex and half-duplex and auto-negotiation
- Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
- Supporting the transmission of extra-long VLAN packets
- Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
- Supporting STP to form a redundant network
- Supporting switches like Cisco, HP, juniper, Huawei, etc
