HDBaseT Receiver Box 100m for HMDI w/IR+PoL
Description

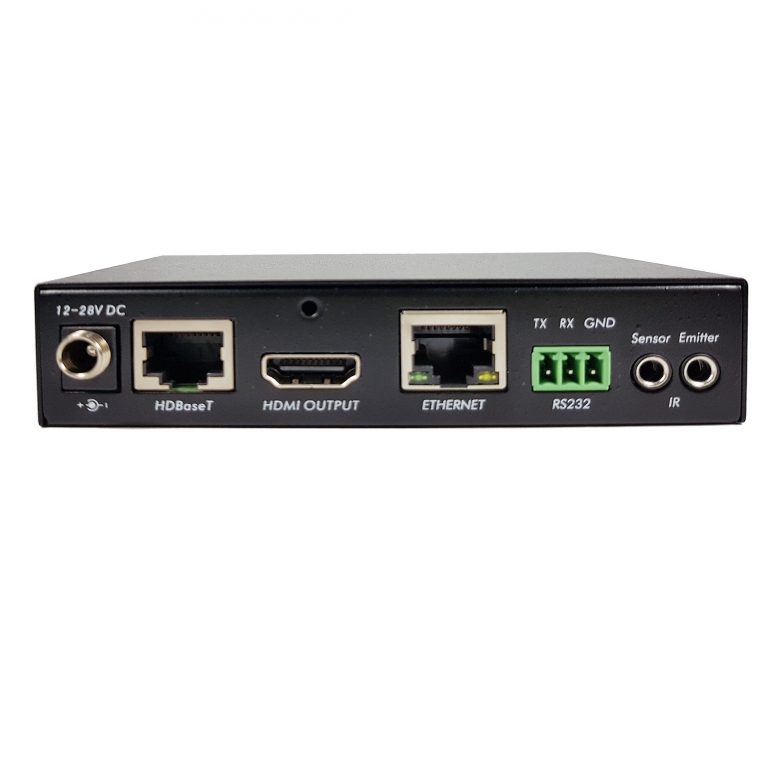

The ATZ HDBT-E100-RB is part of ATZ’s expanding HDBaseT Cat Extender. Single side connections for HDMI, Control, and Power provide a cleaner wiring and rack mounting solution. The design allows the system to be powered via a DC adapter from either side. With a single CAT 5e/6/7 cable, the ATZ HDBT-E100-RB can go up to 100m, 1080p @60Hz 48bit color depth and also support 4K, bi-directional IR, RS232, Ethernet and PoL.
Features:
- Transmit HDMI up to 4K@30Hz 24bit 70m over one Cat5e/6/7 cable;
- Support HDMI 4Kx2K and 3D;
- HDCP Compliant;
- All connectors on one side for easier installation;
- Bi-directional RS-232,IR, Ethernet;
- Power both units from TX or RX side with wall power supply (PoL);
- Status LED for all connections on front.
Additional information
| Weight | 0.6 kg |
|---|---|
| Dimensions | 24 x 18 x 7.5 cm |
| Video | |
| HDMI Compliance | HDMI 3D, 4K |
| HDCP Compliant | Yes |
| Distance | 100m on 1080p@60Hz 70m on 4K30@30Hz |
| Max Resolution | 4K*2K |
| Connectors | |
| TX Connectors | (1) HDMI, (2)Rj45(HDBT/ETHERNET),(2)IR,(1)RS232 |
| RX Connectors | (1) HDMI, (2)Rj45(HDBT/ETHERNET),(2)IR,(1)RS232 |
| Mechanical | |
| Dimensions | 111 x 75 x 25 mm(L/W/H) |
| Net Weight | 1.06lbs[480g] |
| Package Size | 255 x 140 x 90 mm(L/W/H) |
| Gross Weight | 1.676lbs[760g] |
| Power | |
| Power Supply | 24V 1A DC |
| Environmental | |
| Operation Temperature | 32~131°F [0~55°C] |
| Storage Temperature | -4~185°F [-20~85°C] |
| Relative Humidity | 5~95% RH [no condensation] |
