Features:

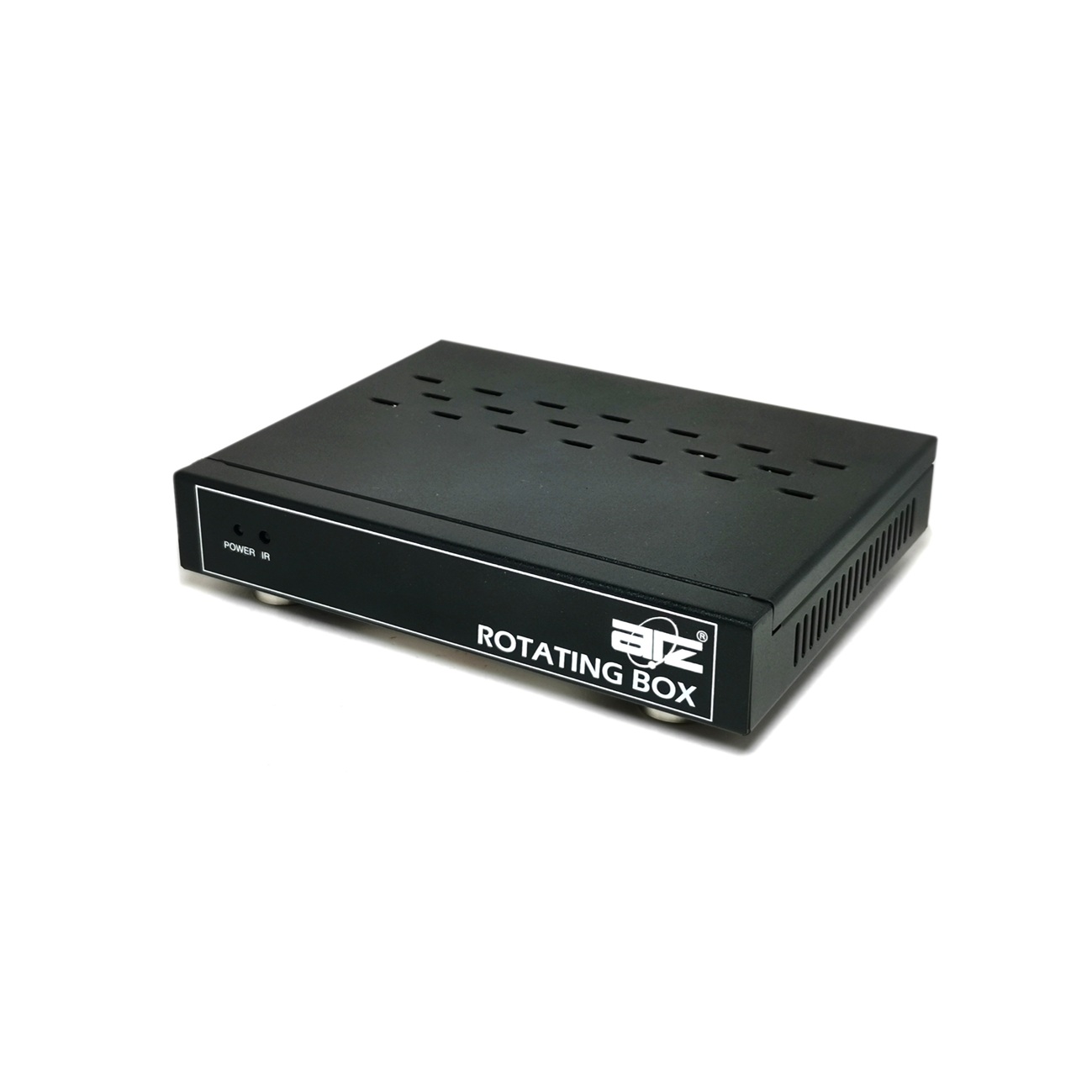

- This product is a high-definition picture rotating box specifically designed for LCD TVs, ultra narrow edge LCD screens, and projectors. It can be connected to LCD TVs or other display devices and rotated at various angles according to user needs.

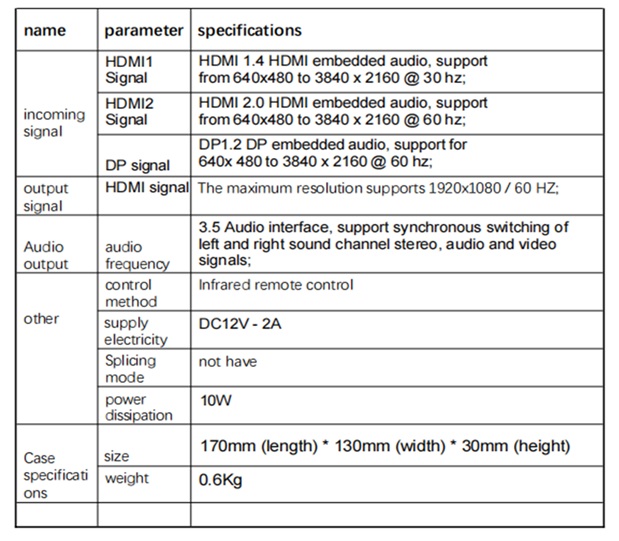

- It supports 2-channel HDMI (1,4 and 2.0), DP(1.4) signals input.
- The product can be cascaded to achieve a maximum of 255 signal outputs.
- The product adopts a high-definition processing chip, supporting 1080P, 4K signal input and 1080P signal output.
- The product is designed with an infrared remote control, allowing users to quickly and fully control the rotator with just one click, making it simple and convenient to expand its functions.

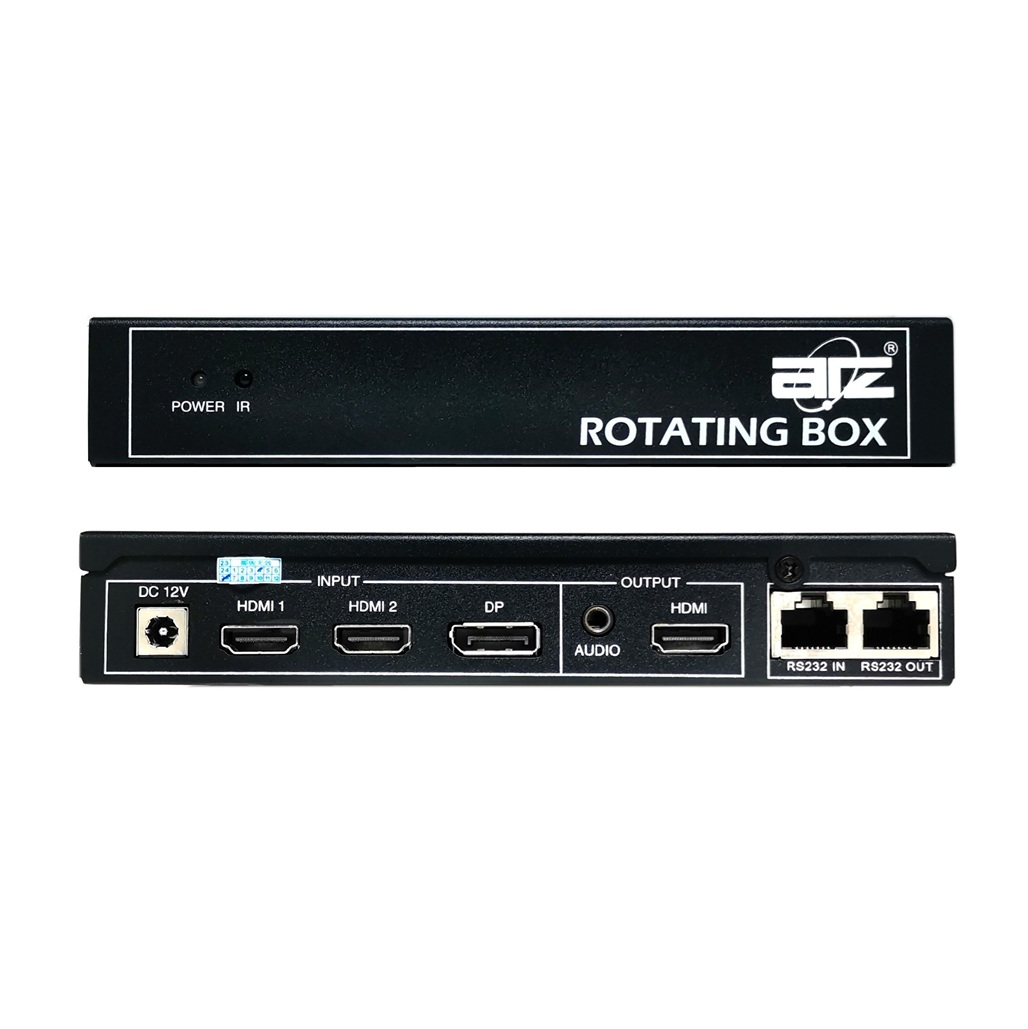

- Simultaneously supporting 2 HDMI and 1 DP inputs, all input signals can be switched to the large screen for rotating display.
- Supports audio input and output, and supports synchronous output of audio and corresponding video.
- Supports flipping of any screen at 90 degrees, 180 degrees, 270 degrees, left and right mirroring, and up and down mirroring.
- Support remote control for remote operation, all functions of setting, switching, and adjusting the vertical rotation box can be completed on the infrared remote control; The remote control adopts an ultra sensitive design, supporting direct mode switching of the numeric keys 0-9 on the remote control, which is convenient and easy.
- Support window mode, 1P, 2PLR, 2PTR, PIP, 4P mode display, support multiple input signals to be spliced and displayed in window mode, this function cannot be used for rotation mode.
- Support intelligent temperature control protection technology, making the product’s heat dissipation performance more stable, reliable, and durable.
- Support trimming black edge technology, which can achieve the display of black edges without black edges around the image.

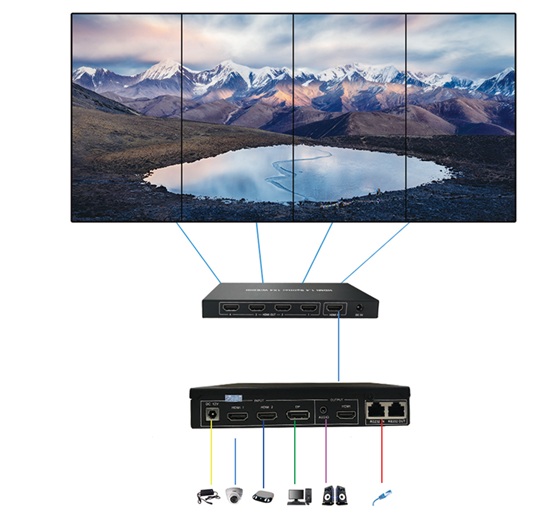

- Support horizontal 0 ° and vertical 90 ° irregular splicing, combined to create a super large and arbitrary wall curtain.
