8×12 [12 Screens] SEAMLESS Video Wall processor PC software/ APP/ RS232 PIP/ POP/Cross-screen/ roaming/Preview.
Description
This is a high-performance video wall processor, which can be widely used in education and
research, government announcement, information publishing, exhibition, controlling and
commanding center, security monitoring, etc. Advanced image processing technologies such as
high definition video signal collecting, real-time and high-resolution digital image processing. It
also employs large-capacity, high-speed FPGA and Cross-point switch to ensure the real-time
processing of all input signals and the consistency of the data, leading to no image delay, frame
loss, which guarantee excellent video displaying.
Features:
• One screen capable of opening 2 windows, total 24 images for 12 outputs
• Supports PIP/ POP/Cross-screen/ roaming
• Supports PC software/ APP/ RS232 control
• Real-time preview input & output signals enabling WYSIWYG
• All 60Hz image processing, achieving smooth and non-tearing images
• Seamless switching no blue, no black screen, no snowflake

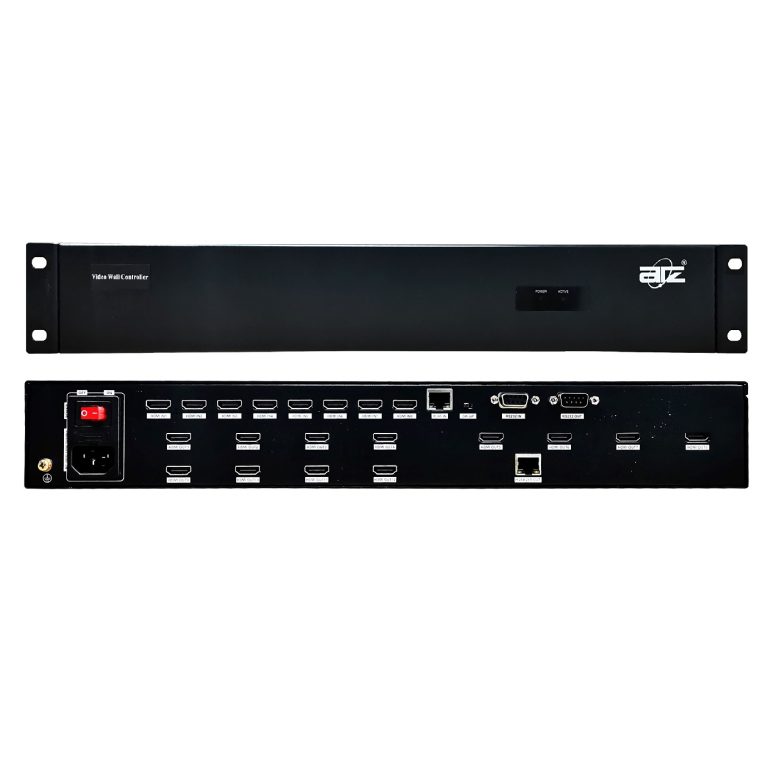

• 8 HDMI inputs 12 HDMI outputs

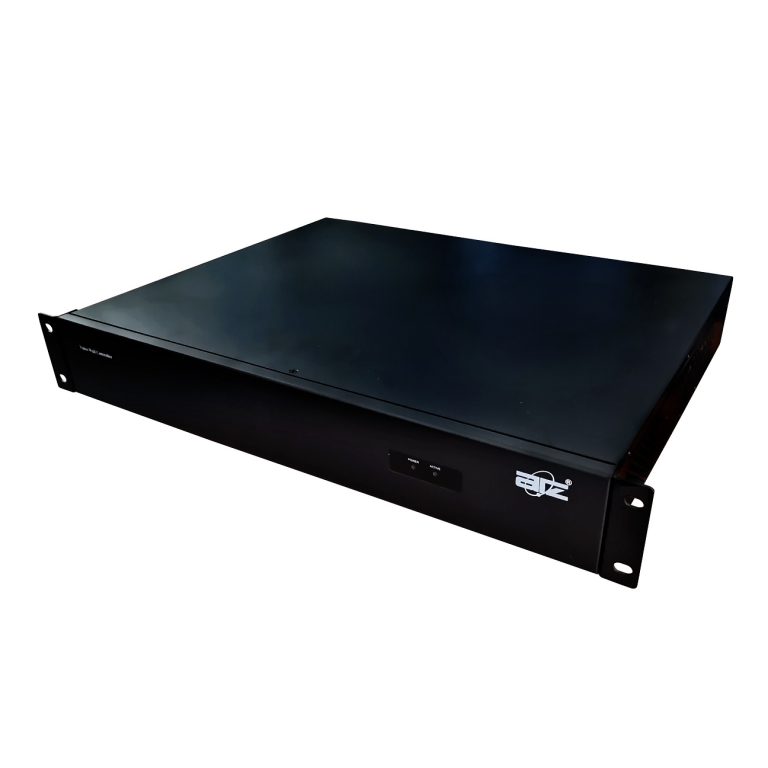

• 1.5U height with standard 19 inch rack-mounted chassis
| Video input | ||||
| Type | No. of ports | Description | ||
| HDMI Input | 8 | Support up to 1920×1200@60Hz, downward compatibility.
Compatible with HDMI1.3 and lower version, EDID version 1.3 |
||
| Video outputs | ||||
| HDMI Output | 12 | · Support common output resolutions: 1024×768@60Hz till 1920×1080@60Hz
· Support 60Hz/50Hz/30Hz output frame rates · Up to 2-window each output/screen · 12 outputs support splicing mode of arbitrary form, such as: 3×4, 2×6 etc. |
||
| RS232 port | 2 | One for RS232 control, one for other device control | ||
| LAN port | 2 | One for TCP/IP control, one for preview | ||
| Android and iOS application control | ||||
| Others | ||||
| Dimension | 410*350*72mm | Weight | 7kgs | |
| Power Supply | 100VAC–240VAC 50/60Hz | Consumption | 950W | |
| Work Environment | Temp:0-40℃;
Humid: 0-95% |
Warranty | 2 years | |
