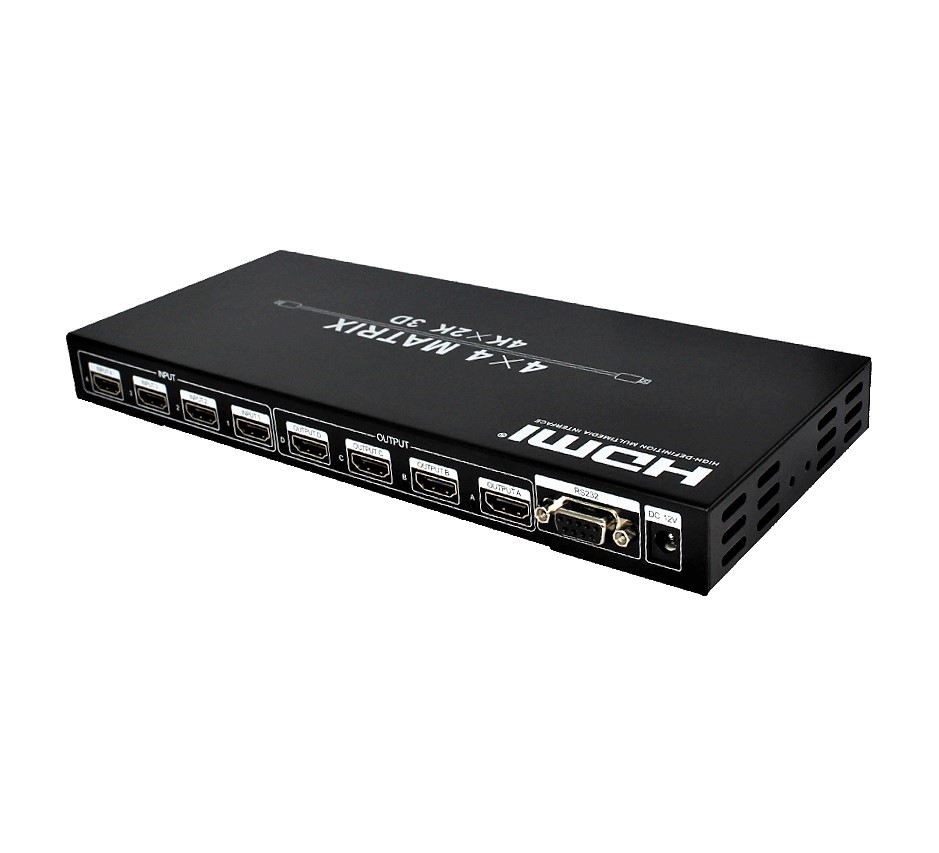

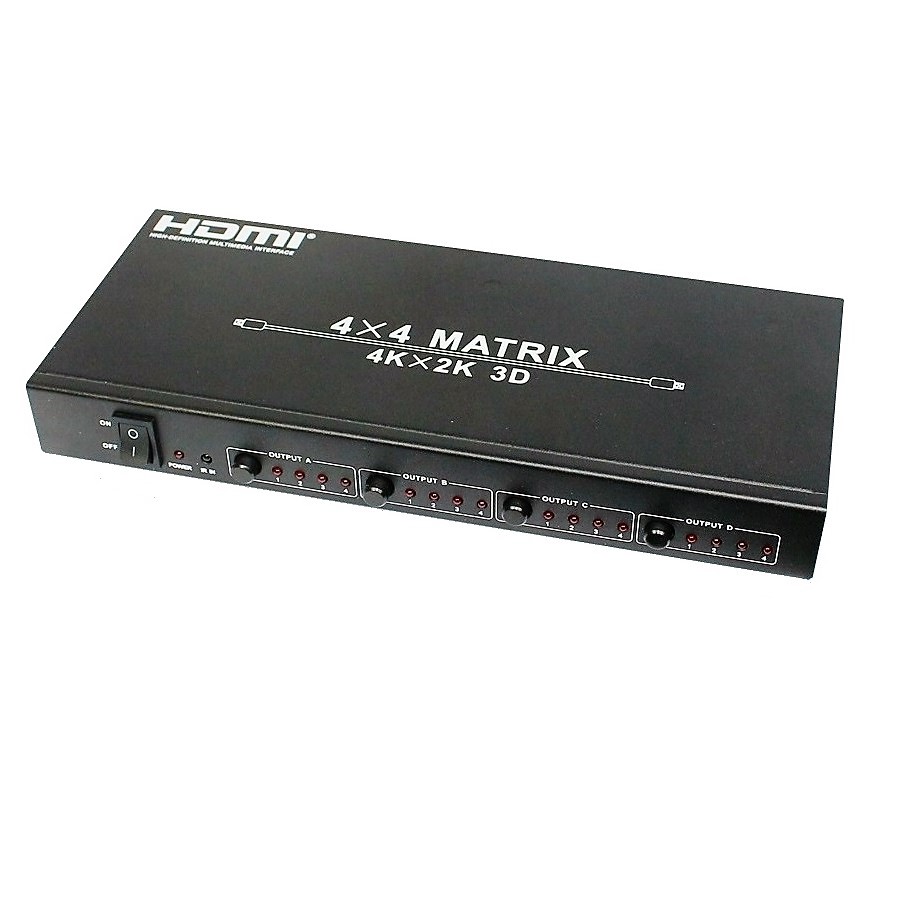

4×4 HDMI1.4 Matrix Switch w/Remote Control+RS232+EDID Selector
Description

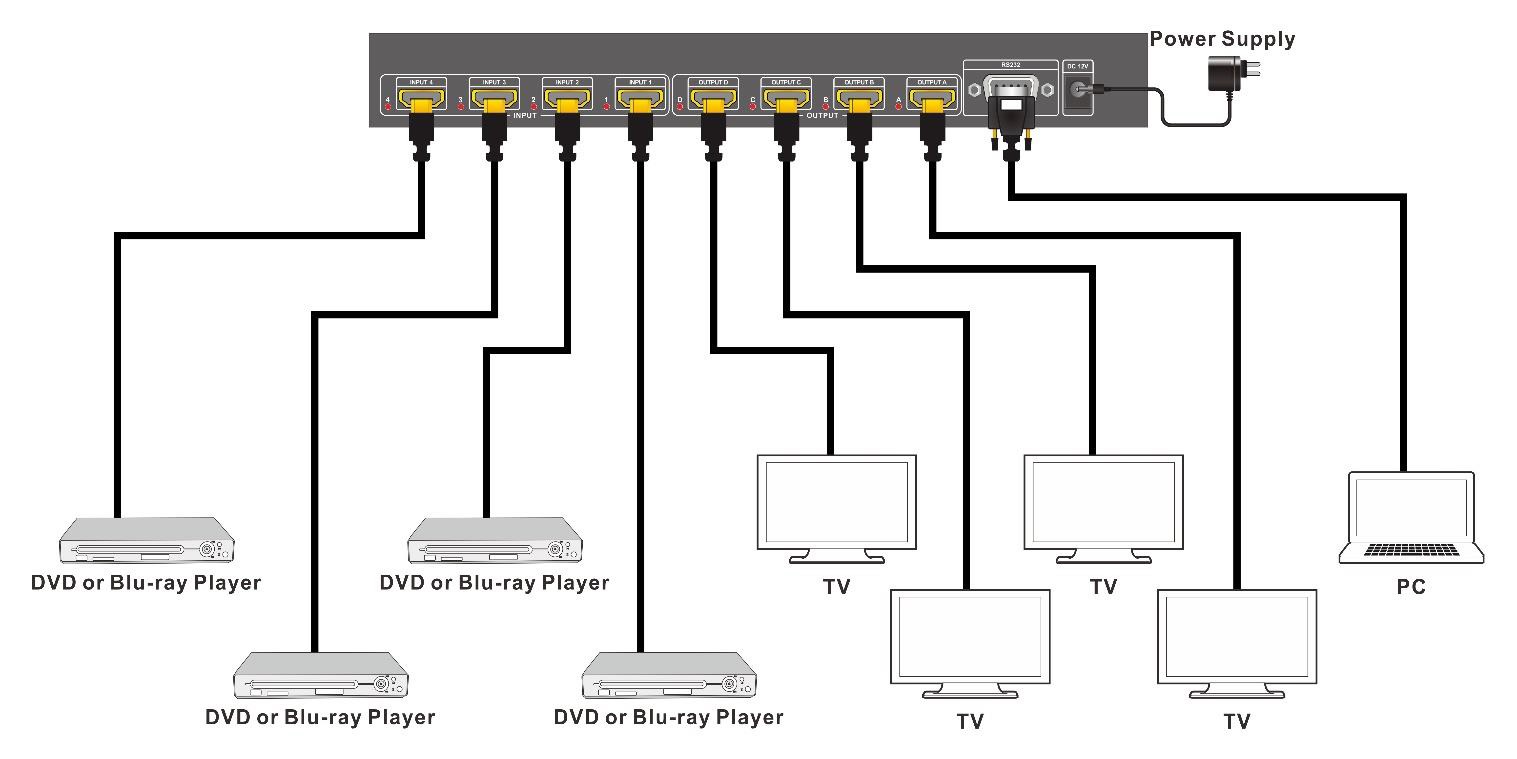

This is a high performance HDMI Matrix with four HDMI inputs & four outputs. It allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the four displays simultaneously, and supports 4K×2K, 3D, Deep Color. With its 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution.
Features:
- Supports display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
- 3D HDMI 1.4a video format support.
- 3D video support including Frame Packing for all 3D formats up to a 297MHz TMDS clock.
- Supports deep color up to 48-bit per pixel.
- HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT).
- Supports reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR.
- Full colorimetry including sYCC601, Adobe RGB, Adobe YCC601, xvYCC extended gamut color.
- Operates for TMDS clock frequencies up to 300MHz
Additional information
| Weight | 2.28 kg |
|---|---|
| Dimensions | 20 x 20 x 10 cm |
| Frequency Bandwidth | 297MHZ[10.2Gbps] |
| Input Ports | 4 x HDMI Female input ports |
| Output Ports | HDMI Female output ports |
| Power Supply | DC 12V, 2.5A |
| ESD Protection | Human Body Model: ± 8kV (air-gap discharge) |
| ± 4kV (contact discharge) | |
| Dimensions (mm) | 115(W) X 270 (D) X 45 (H) |
| Weight (g) | 900 |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 20W |
