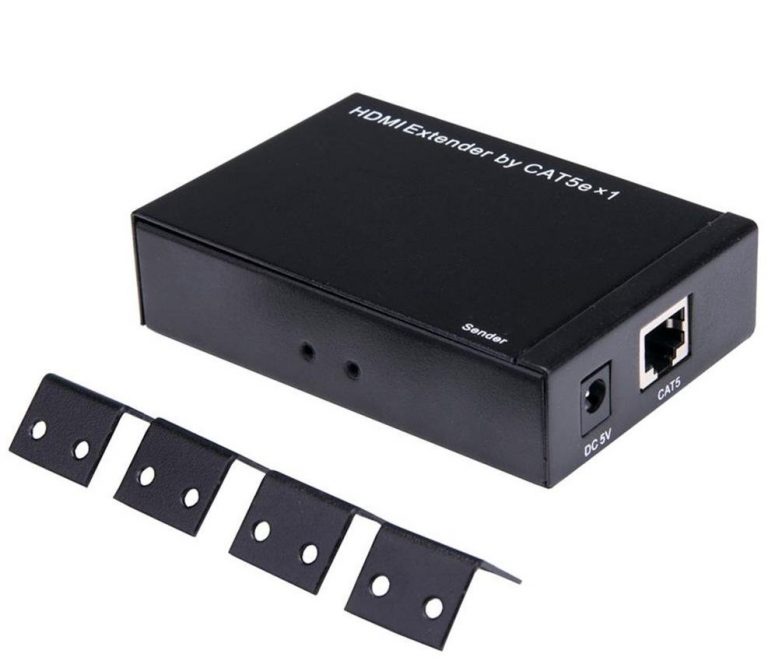

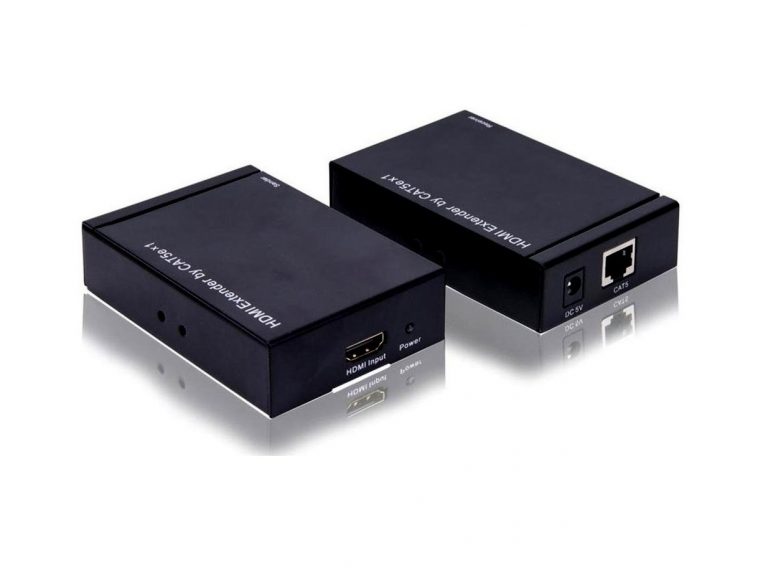

HDMI Extender over Cat.5e/Cat.6 (50m)
Description
The HDMI Extender over ONE CAT5E/CAT6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT5E/CAT6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Extender and receiver, over ONE CAT5E/CAT6 extender is your substantial HDMI extender tool.
Features:
- HDCP Pass through and EDID Compatible
- One pair as a full functional module, no need of setting
- One piece of CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission
- Follow the standard of IEEE-568B
- Transmission distance can be up to 50 meters for 1080p using CAT-6 Cable
- Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable
- Support highest video resolution 1080p
- Support 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth
- Support 8bit per channel (24bit all channel) deep color
- Support uncompressed 2 channel audio such as LPCM
- Support 3D
- High Quality Chipset: Maxim USA – MAX3814, MAX3815
Additional information
| Weight | 0.85 kg |
|---|---|
| Dimensions | 20 x 20 x 15 cm |
- Signal Input: HDMI Signal
- Input Video Signal: 0.5 -1.0 volts p-p
- Output Video: HDMI Signal
- DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
- Cat6 Cable: 50m for 1080p
- HDCP: Compliant
- EDID: Compatible
- Video Amplifier Bandwidth: 1.65Gpbs/165MHz
- Vertical Frequency Range: 50/60Hz
- Interlaced (50 & 60 Hz): 480i, 576i, 1080i
- Progressive (50 & 60 Hz): 480p, 576p, 720p, 1080p
- Operating Temperature: 0 Celsius to 70 Celsius
- Operating Humidity: 10% to 85% RH (non-condensation)
- Storage Temperature: -10 Celsius to 80 Celsius
- Storage Humidity: 5% to 90% RH (non-condensation)
- Power Supply: 5V DC
- Power Consumption (Max): 5W
