Description

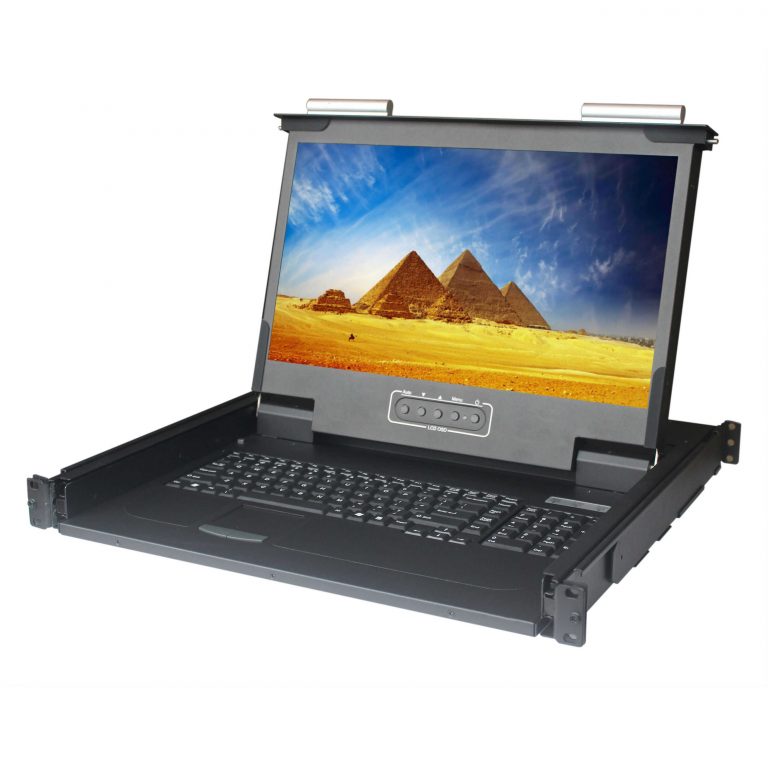

ATZ range of LCD console drawers provides a variety of features that simplify to access servers to making system monitoring, troubleshooting and software upgrades.
The self-locking rails when in the fully extended open position and the ultra-convenient auto lock release when the LCD panel is closed, make for simple and hassle free operation.
Available with 17” or 19” A-Grade LCD panels, combo Single, 8 or 16 port integrated KVM switch & with an option remote IP console.
__________________________________________________________________________________
Features:
- Support combo interface, VGA-USB & VGA-PS/2.
- LCD panel A-Grade
- Durable 104-key keyboard and touch pad.
- Quick and simple installation.
- Heavy Duty Steel housing
- Self-locking and auto release rails for ultra-convenience.
- Port selection via push buttons or On-Screen-Display (OSD).
- Dedicated daisy chain port to expand up to 240 servers.
- Access Control List (ACL) security function for up to 8 independent user accounts.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |

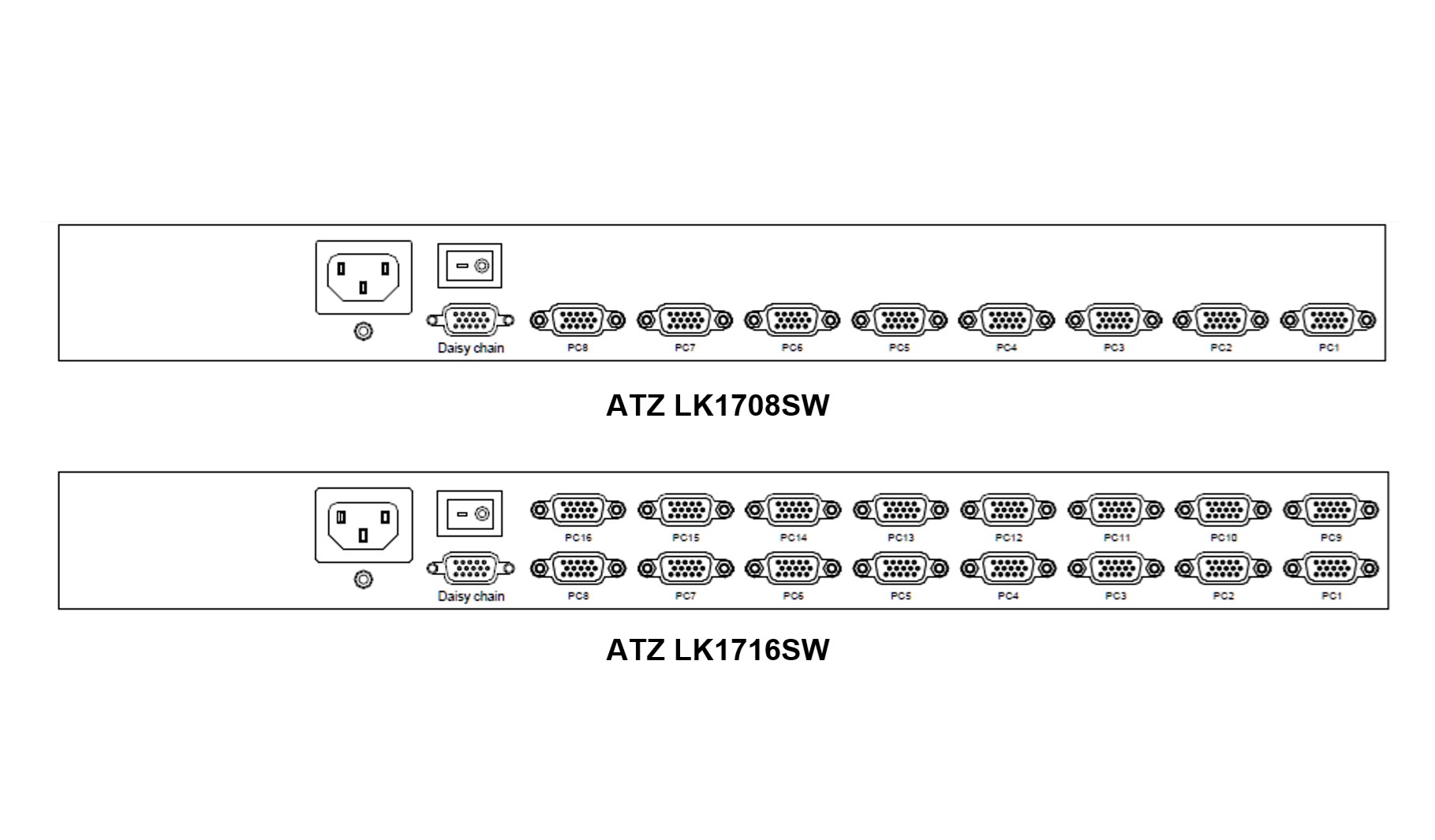

| Part No. | ATZ LK1708SW | ATZ LK1716SW | |
|
Direct no. of Computers |
8 |
16 |
|
| Maximum no. of Computers | 232(Daisy Chain) | 240(Daisy chain) | |
| LCD | Size | 17.3” | |
| Backlight | LED | ||
| Resolution | 1920*1080 Full HD ( support resolution up to 1920×1200 ) | ||
| Max. color | 262K | ||
| Luminance | 300cd/m2 | ||
| View Angel (H/V) | 140 / 120 | ||
| Contrast Ratio | 3000 : 1 | ||
| Port Selection | Push Button, OSD or Hotkey | ||
| KB/Mouse Emulation | USB & PS2 | ||
| Rack Depth | 500mm to 1100mm ( rack cabinet front rails to rear rails ) | ||
| Power | 100-240V AC 50/60Hz via IEC Type power cord | ||
| Environment | Operation temp: 0 to 50℃ Storage temp: -20 to 60℃ Humidity: 10% – 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
||
| Physical Dimensions / Net Weights | 448x42x580mm (WxHxD) / 12.0KG | 448x42x580mm (WxHxD) / 12.5KG | |
| Packing Dimensions / Gross weights | 715x140x780mm (WxHxD) / 18.0KG | 715x140x780mm (WxHxD) / 19KG | |
| Accessory | |||
| 1x 1.8meter IEC Type Power Cord 1x 1.8meter VGA& PS2Cable 1x 1.8meter USB A Type Cable for (ATZ LK1701SW) |
|||
| Optional Item | |||
| ATZ KCU-1.8 | 1.8meter 2-in-1 KVM Cable-USB & VGA | ||
| ATZ KCU-3 | 3.0meter 2-in-1 KVM Cable-USB & VGA | ||
| ATZ KCU-5 | 5.0meter 2-in-1 KVM Cable-USB & VGA | ||
| ATZ KCP-1.8 | 1.8meter 3-in-1 KVM Cable-PS/2 & VGA | ||
| ATZ KCP-3 | 3.0meter 3-in-1 KVM Cable-PS/2 & VGA | ||
| ATZ KCP-5 | 5.0meter 3-in-1 KVM Cable-PS/2 & VGA | ||
