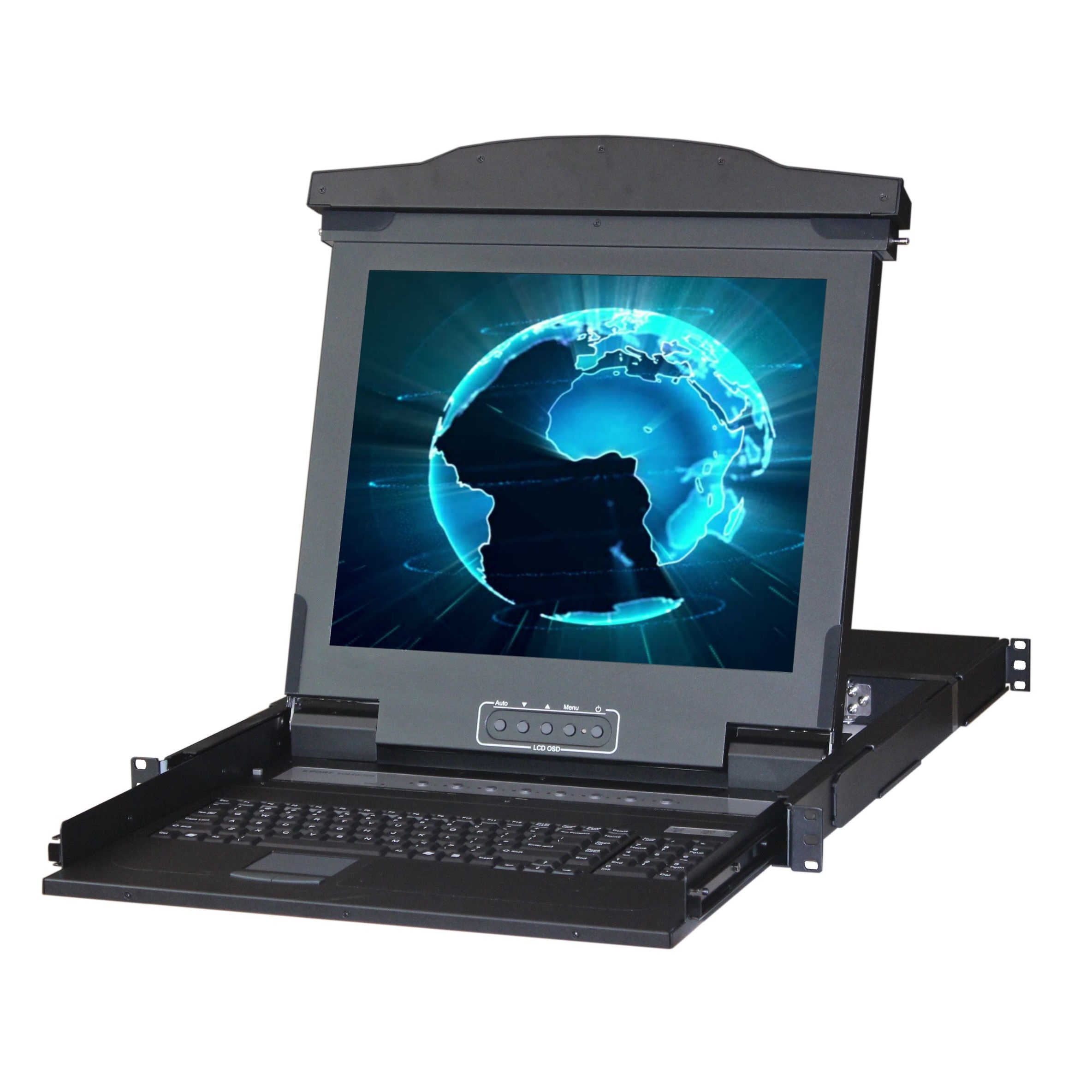

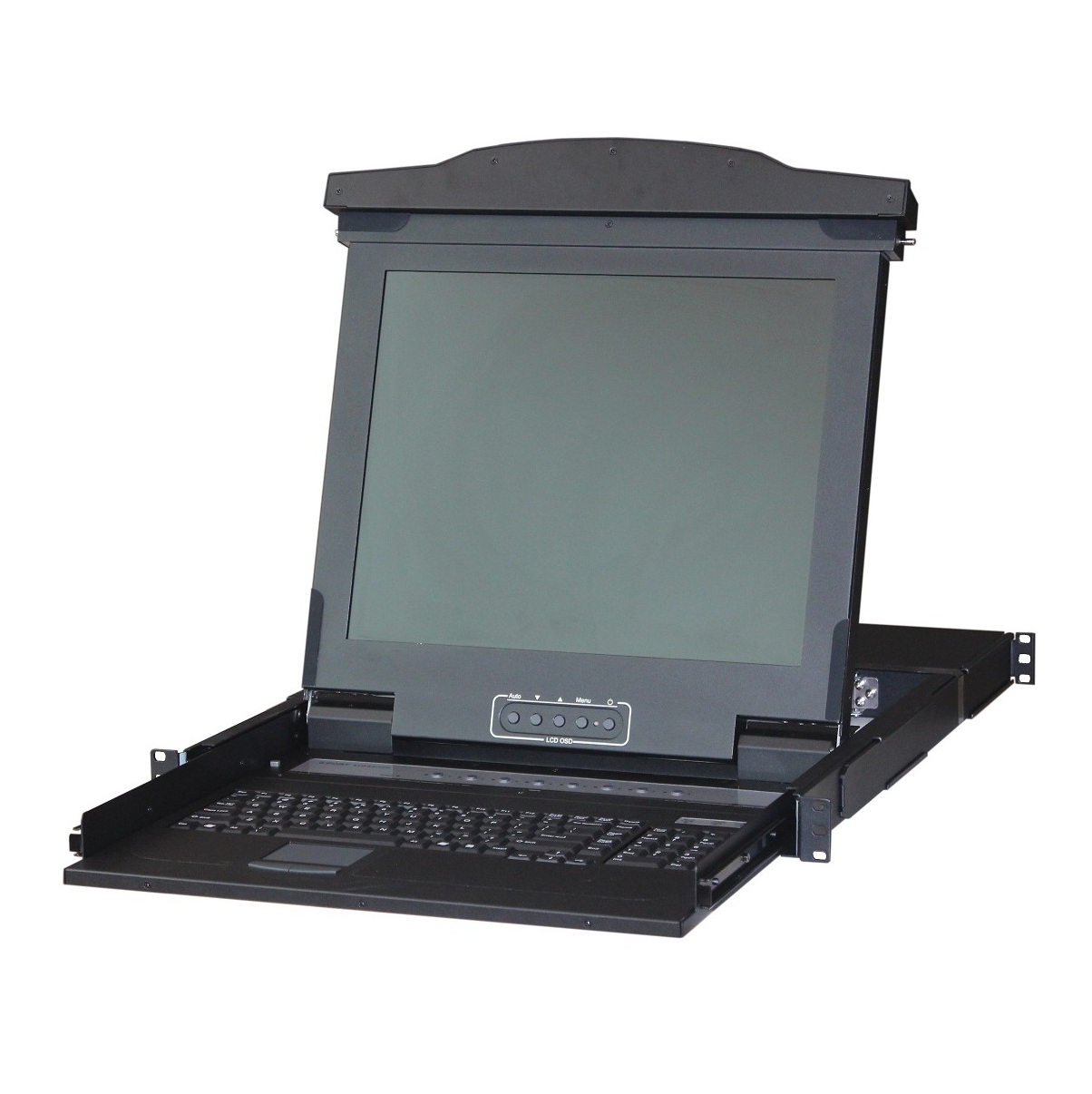

ATZ range of LCD console drawers provides a variety of features that simplify to access servers to making system monitoring, troubleshooting and software upgrades.
The self-locking rails when in the fully extended open position and the ultra-convenient auto lock release when the LCD panel is closed, made for simple and hassle free operation.

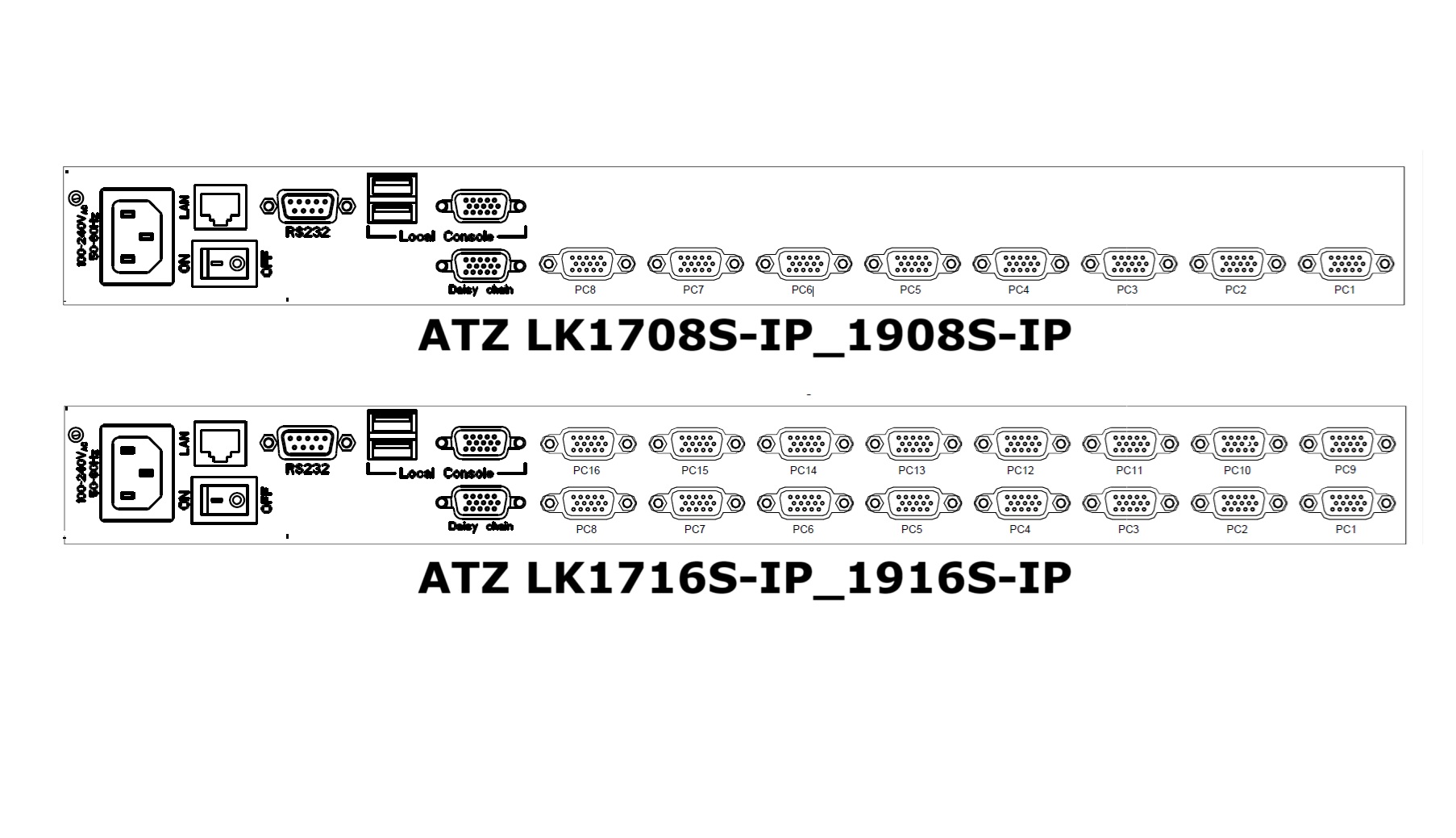

Available with 17” or 19” A-Grade LCD panels, combo Single, 8 or 16 port integrated KVM switch w/Extra local console + remote IP console.
Features:
- Integrated with 17” or 19” 1280 x 1024 LCD panel.
- Support combo interface VGA-USB and VGA-PS2.

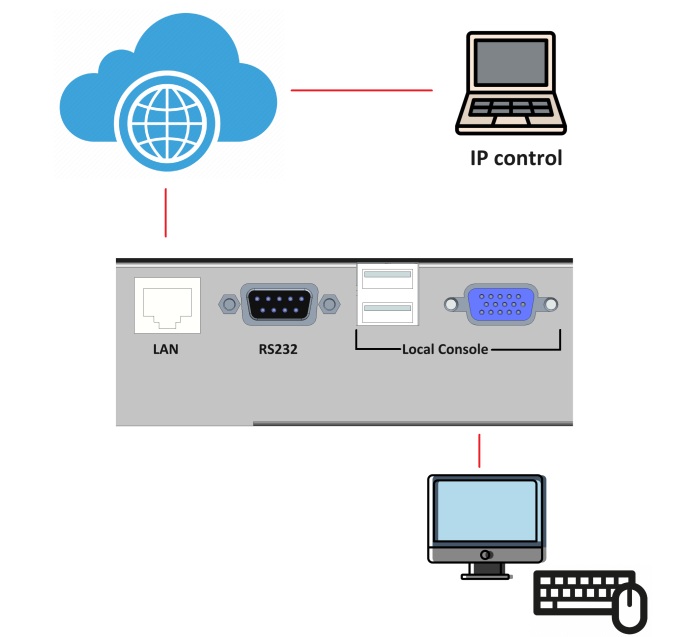

- Built in IP module for remote access (remote user video resolution up to 1920 x 1080 @ 60Hz).
- Additional one USB Local console to add local KB/Mouse & VGA.
- Durable 104-key keyboard and touch pad.
- Quick and simple installation.
- Self-locking and auto release rails for ultra-co nvenience.
- Port selection via push buttons or On-Screen -Display (OSD).
- Dedicated daisy chain port to expand up to 240 servers.
- Access Control List (ACL) security function fo r u p to 8 independents user accounts.
