SKU: ATZ LK3X56KMT Category:

ATZ LK3X56KMT

Availability: Out of stock

$2,230.00

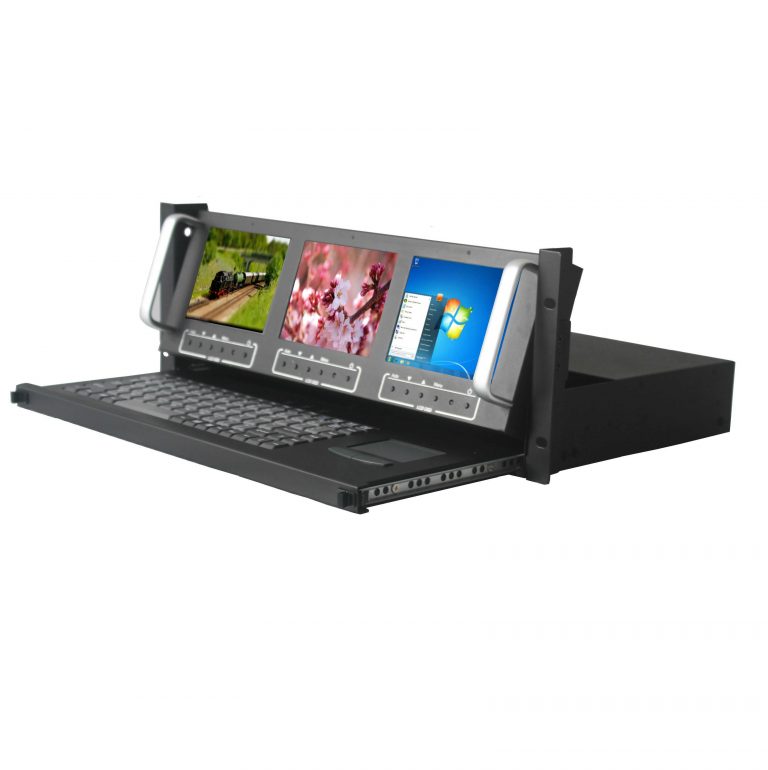

5.6″ 4U Triple Screen LCD Console + 3 ports VGA-USB KM switch/ USB Hub/Audio Interface.

Out of stock


Share it:

Features:

  • Compact 19 inch rack mountable. Build in Triple 5.6 inch TFT LCD Display in 4U height.

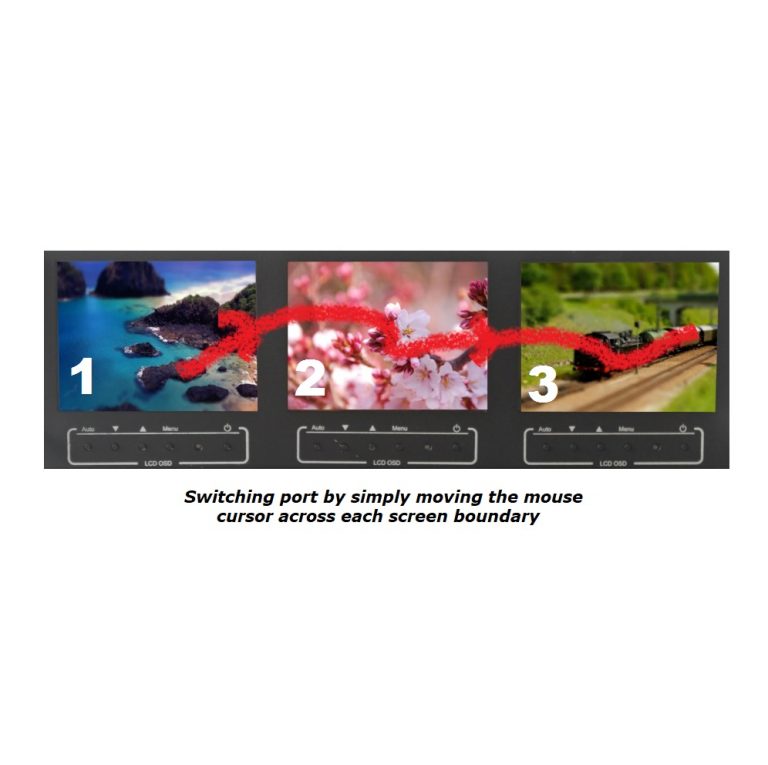

  • Integrated 3 Port Keyboard/ Mouse Switch (KM Switch), move mouse across screen boundary to switch.
  • Independent VGA/ USB/ Audio/ HUB interface for each PC
  • Heavy duty steel chassis with hardness glass protect screen (touch for optional).
  • Front osd control buttons to optimized display.
  • 90° tilt adjustment for ultra convenience view angle.

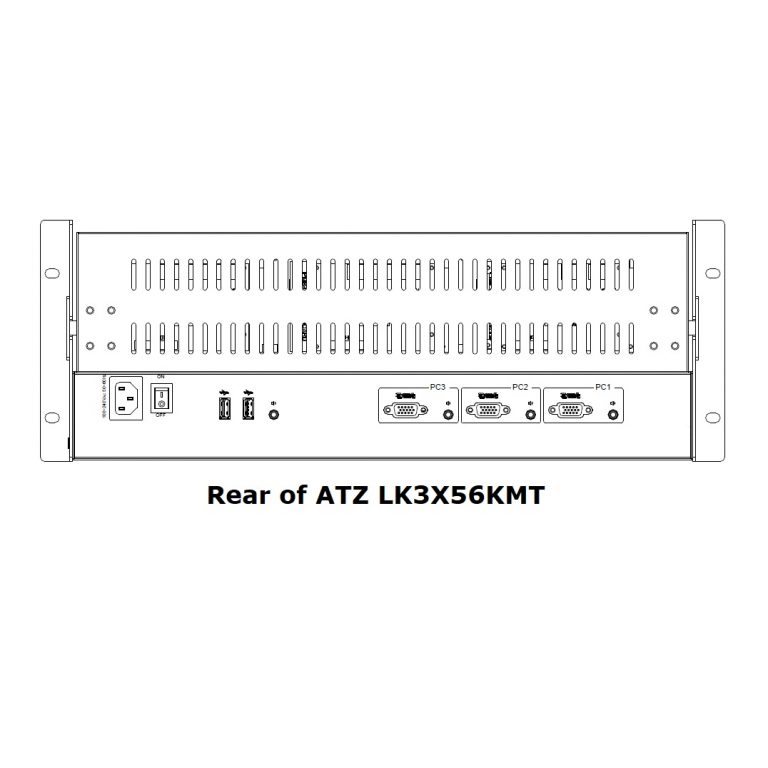

  • Rear 2x USB 2.0 Type A, Sharing USB peripheral Device for each computer (ex, flash disk, hard driver, KB/Mouse).
  • Build in 2x2w stereo speakers.
  • Durable 88-key keyboard and touch pad tray
  • Quick and simple installation.
Weight 12 kg
Dimensions 61 x 41.5 x 30 cm
Part No. ATZ LK3X56KMT
Direct no. of Computers 3
Maximum no. of Computers 3
LCD Size Triple 5.6 inch
Backlight LED
Resolution 640*480
Max.color 262K
Luminance 200cd/m2
View Angel (H/V) 140 / 120
Contrast Ratio 500 : 1
Port Selection Mouse moving across screen boundary or Hotkey
USB HUB Yes , Rear 2x USB 2.0 Type A for USB Peripheral Device
Touch Screen Yes , for option ( Driver needed )
KB/Mouse Emulation USB
Power 100-240V AC 50/60Hz via IEC Type power cord
Environment

Operation temp: 0 to 50℃

Storage temp: -20 to 60℃

Humidity: 10% – 90%, non-condensing

Shock: 10G acceleration ( 11ms duration)

Vibration: 17 to 500Hz 1G PTP

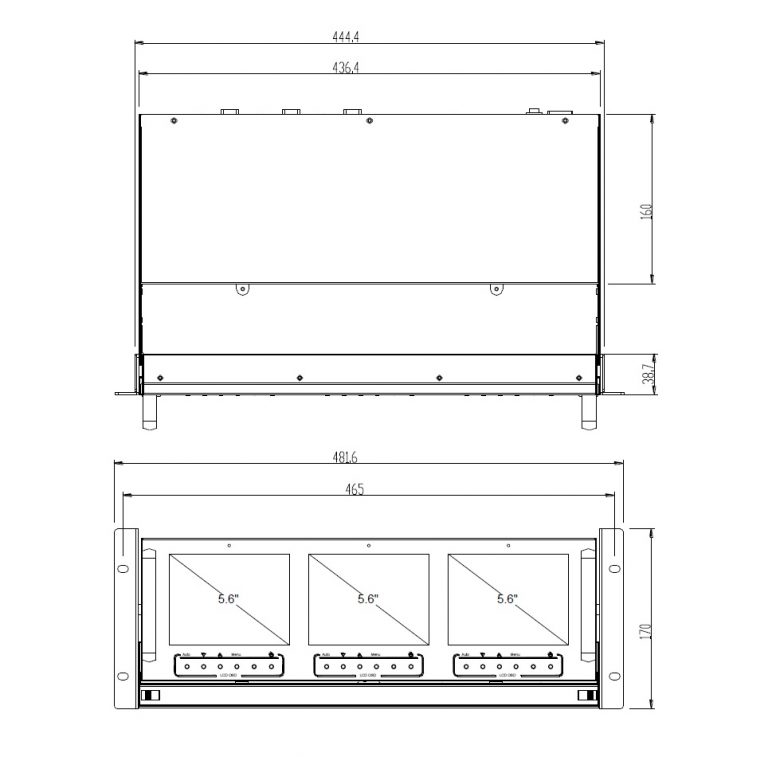

Physical Dimensions / Net Weights  448x170x265mm (WxHxD) / 8.5KG

Packing Dimensions / Gross weights

610*300*415mm (WxHxD) / 12KG

Accessory
1x 1.8meter IEC Type Power Cord
3x 1.8meter 2-in-1 KVM Cable-USB&VGA
3x 1.8meter Audio Cable
