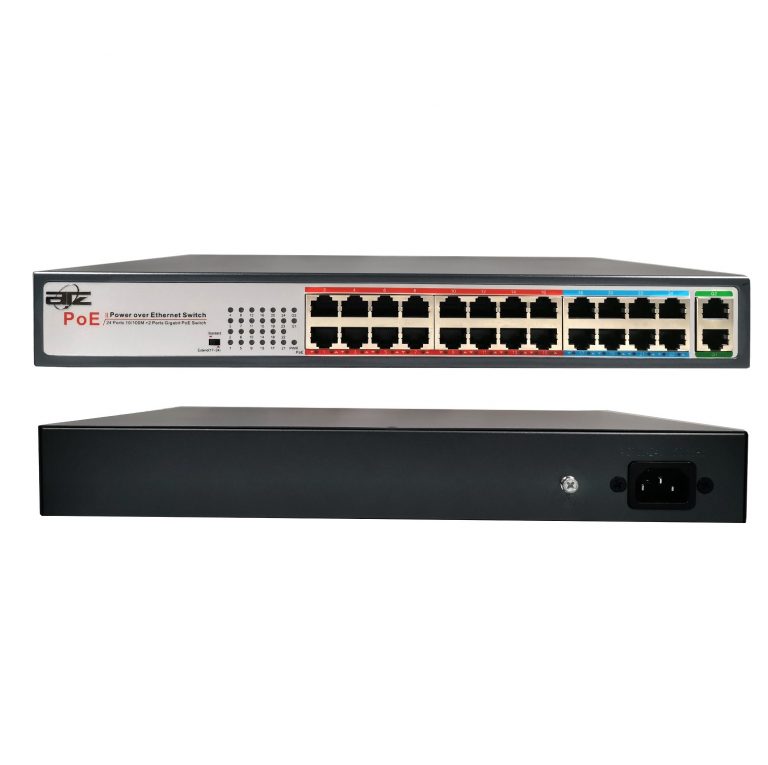

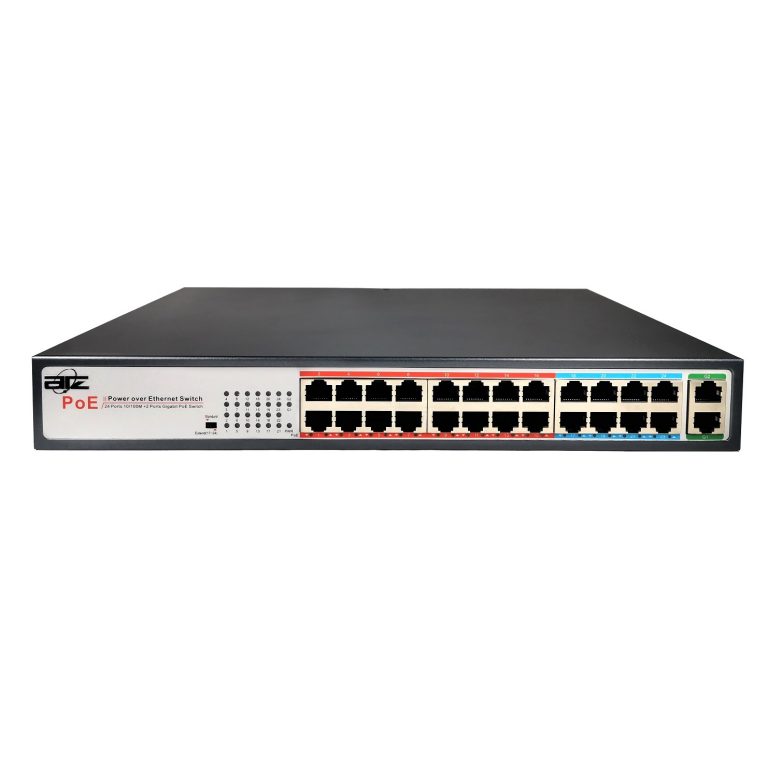

ATZ POE-SW24PL is an unmanaged PoE switch. It has 24*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports . Port 1-24 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 250W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises. Unmanaged model, plug and play, no configuration, easy to use.
Features:
10/100Mbps access , gigabit uplink
- All series supports “10/100M RJ45 port and 10/100/1000M RJ45 port” combination, which enables users to flexibly build networking to meet the needs of various scenarios.
- Support non-blocking wire speed forwarding
- Support full duplex based on IEEE802.3x and half duplex based on Backpressure
Smart PoE power supply function
- 16*10/100Base-TX RJ45 ports support PoE power supply, which meets the requirements of PoE power supply in various scenarios in the security field.
- Comply with IEEE 802.3af /at PoE power supply standard, automatically identify PoE devices for power supply without damaging non-PoE devices. The maximum PoE output power is 250W, and the maximum PoE output power of a single port is 30W.
- The PoE port supports the priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is preferentially guaranteed to prevent the device from being overloaded.
Innovative function
- Long distance switch: When opening, the speed of 17-24 port is reduced to 10M. With the existing twisted pair cable, the transmission limit of the twisted pair can be broken. The transmission distance can reach 250 meters; on the other hand, It can solve the problem of poor transmission caused by line aging.
The equipment is stable and reliable，easy to operate
- The host has low power consumption, fanless mute design, aluminum alloy metal shell, and excellent heat dissipation to ensure stable operation of the product.
- Self-developed power supply, high redundancy design, provides long-term stable PoE power output.
- The equipment fully meets the safety requirements of CCC,CE, FCC, and RoHS and is safe and reliable to use.
- User can easily understand the working status of the device through the power indicator (PWR), port status indicator, and PoE operation indicator.
- Plug and play, no configuration, simple and convenient.

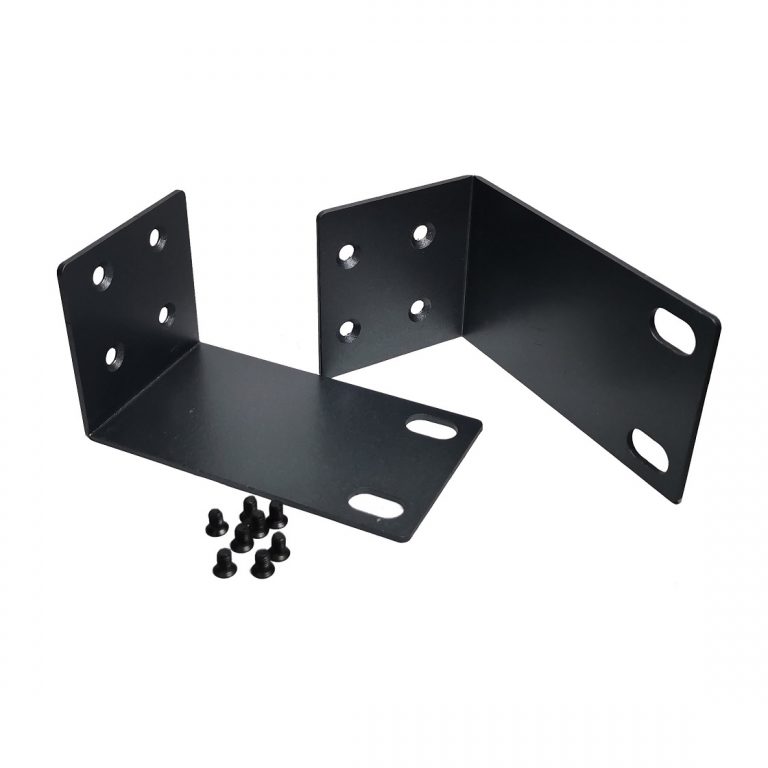

- Support desktop and 1U/19 inch cabinet installation
