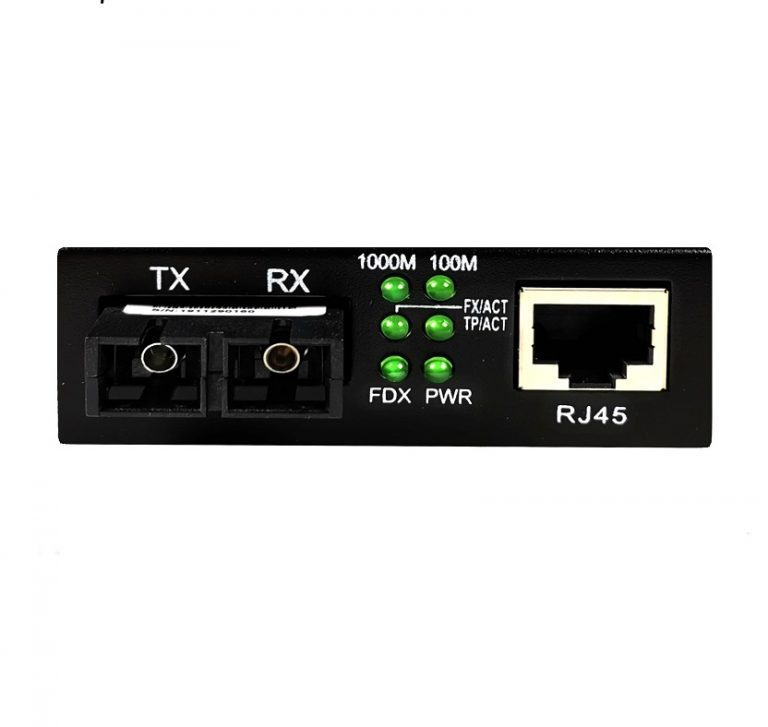

10/100/1000M Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network connections: 10/100/1000Base-T and 1000Base-SX. It inter-converts electrical signals of 10/100/1000Base-T twisted pairs with optical signals of 1000Base-SX, extending the transmission distance of a network from 100m via copper cables to 550m/2km (fiber size:50/125 µm) via fiber optical cables. It supports transmission in multi-mode dual fiber.
Features:
- Supporting inter-conversion between 10/100/1000Base-TX and 1000Base-SX
- Supporting full-duplex and half-duplex and its auto-sensed
- Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
- Supporting the transmission of extra-long VLAN packets
- Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets
- Supporting STP to form a redundant network
Remarks:
850nm / 550m (ATZ FO-MC-GE-MMDP0.55K-SC)
1310nm / 2km ( ATZ FO-MC-GE-MMDP2K-SC)
