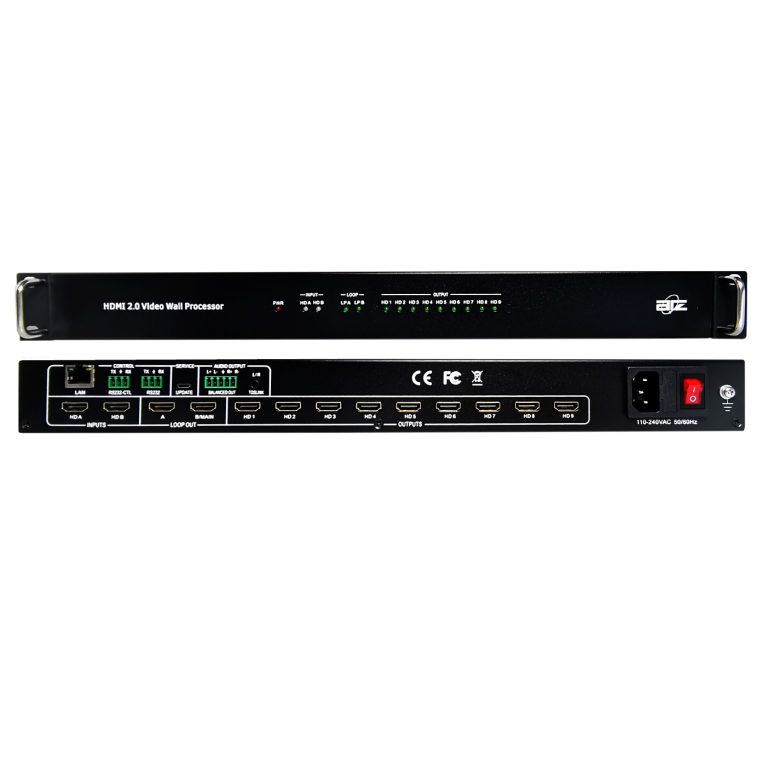

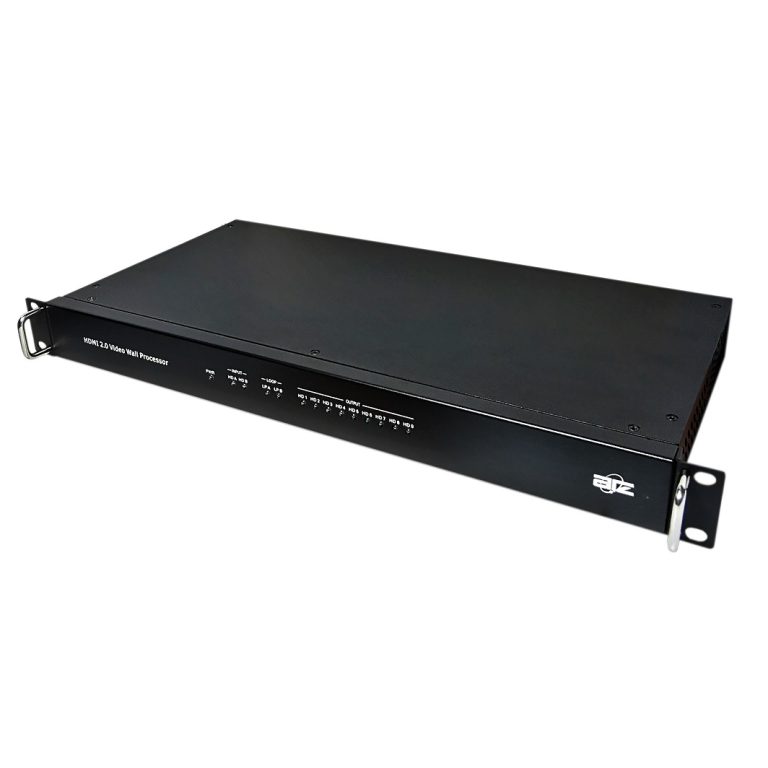

2×9 HDMI2.0 4K@60 Video Wall Processor, Loopout, Scaling+RS232+TCP/IP (3×3 Wall)
Description
This product is an HDMI 2.0 Video Wall controller with 2 HDMI inputs, 2 HDMI loop outputs and 9 HDMI scaling outputs for video wall processing. The Toslink jack terminal provides analogue L/R audio and digital SPDIF audio output. 5-pin phoenix jacket provides balanced L/R audio output. The product also supports RS-232 bypass feature for daisy chain and cascade connection among different units.
Features:
- HDMI 2.0 and HDCP 2.2 compliant
- Support multi-resolution up to 3840×2160@60Hz video output for video wall
- Support Bezel Compensation with two modes
- Support 2 channels HDMI loop out
- Support PIP on video wall
- Support 180º rotation
- Support RS-232 and TCP/IP control
- Support CEC control with displayers by PC Tool or commands
| Technical: | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2/1.4 |
| RS-232 | Baud rate: 57600, data bit: 8, Stop bit: 1, no parity |
| Input Video Formats | 1024×768@60, 1280×800@60, 1280×1024@60, 1280×960@60, 1360×768@60, 1366×768@60, 1440×900@60, 1400×1050@60, 1600×900@60, 1600×1200@60, 1680×1050@60, 1920×1200@60,
480p@60, 576p@50, 720p@50, 720p@60, 1080i@50, 1080i@60, 1080p@24, 1080p@25, 1080p@30, 1080p@50, 1080p@60, 3840×2160@24, 3840×2160@25, 3840×2160@30, 3840×2160@50, 3840×2160@60, 4096×2160@24, 4096×2160@30, 4096×2160@50, 4096×2160@60 |
| Audio Formats | 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Mechanical: | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 430mm [W] × 220mm [D] × 44mm [H] |
| Weight | 5 kg |
| Power Supply | Input: AC 100-240V 50/60Hz |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 – 50% RH (no-condensing) |
