ATZ HDMI-V2-31L

$33.00

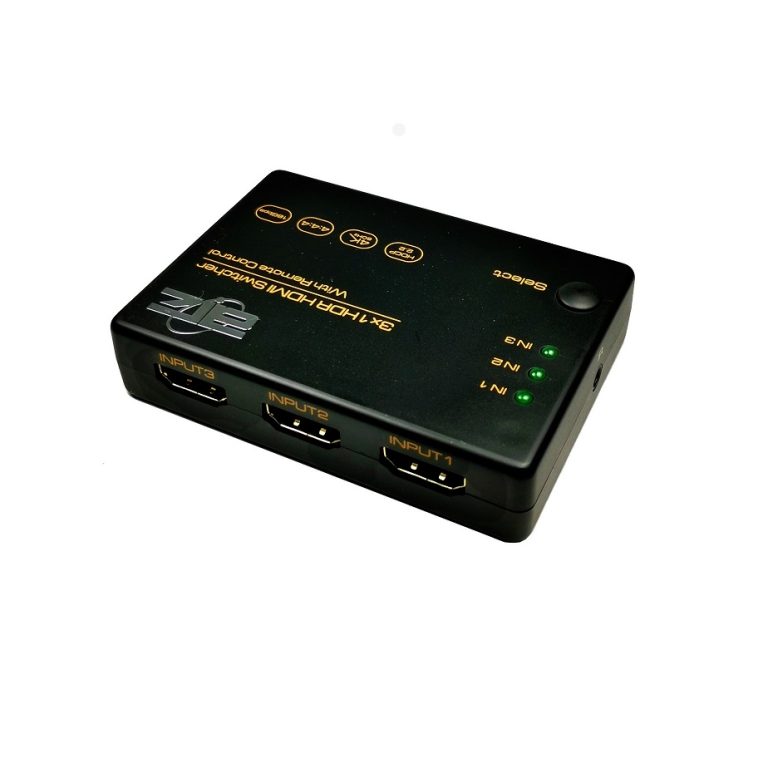

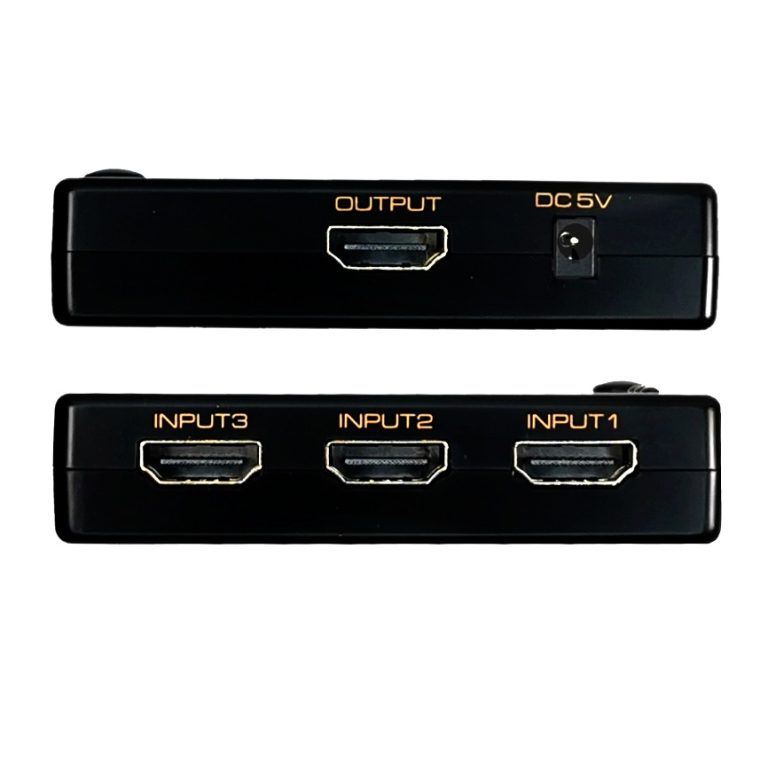

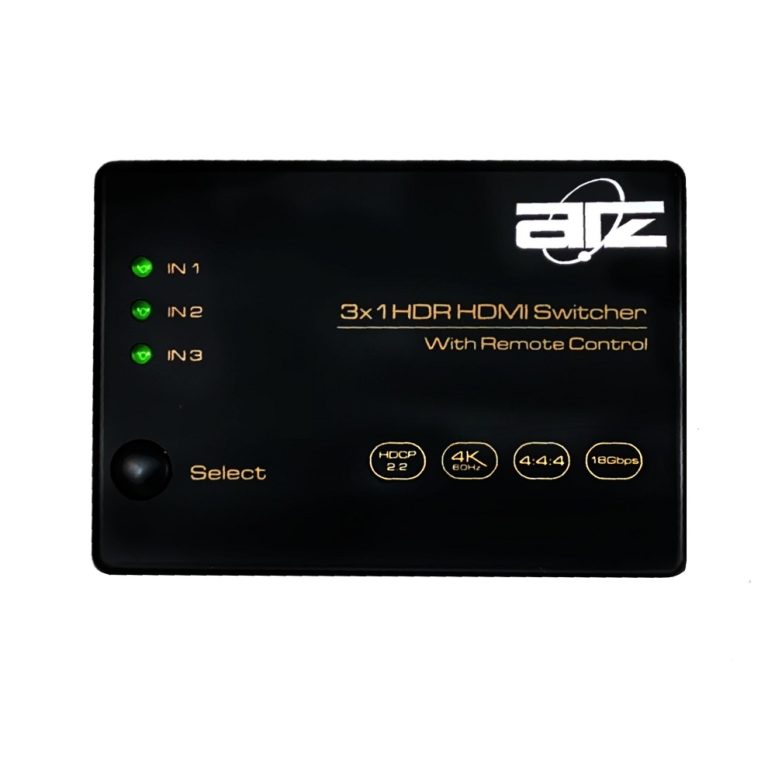

HDMI Switch 4K 60HZ 3×1 HDMI 2.0 Switcher


Share it:

Features:

  • Support HDMI 3-to-1 4]K HDMI v2.0 input sources (connect to PS4 Pro, Xbox One, Nintendo Wii, Blu-ray/DVD player, Apple TV, Chromecast, PC/laptop, etc.) to one 4K Display
  • Supports 4K@60Hz 4:4:4 HDR (4096×2160) 18Gbps transmission speed, 3D, deep color up to 36bit.
  • Support HDCP 2.2/1.4, HDMI CEC. HDMI channel bandwidth up to 600MHz. Backward compatible with HDMI V1.4, V1.3 . Enjoy high picture quality without any video loss and delay by this HDMI 3 to 1 switcher
  • Supports Auto-switching, Manual-switching & Control via IR remote:
    Automatic switching – Jumps to next active input port automatically when the current port is powered off. It will also switch to the last selected port automatically, and at restart. To reset back to manual-switching, press “Select” button for 5-10 seconds to switch mode.
  • Supports Input devices: Computer, DVD player, Blu-ray player, Amplifier, Apple TV, Roku streaming media player, TV Box, Play Station 3/4, Xbox One/360, Nintendo Wii.
  • Supports Output devices: Ultra 4K TV (UHD TV), HDTV, monitor, display or projector.
Weight 0.5 kg
Dimensions 20 x 20 x 10 cm
Input channel 3 port
Output channel 1 port
Video format 480P/720P/1080P/2160P
Deep color 8/10/12Bit@480P/720P/1080P 8Bit@2160P
Audio format Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM……
Transmission bandwidth 25~600MHz
Transmission rate 0.75~18Gbps
Auto switch Support
IR distance ≥4m
Timing Support
Input cable length 2160P/AWG 26 ≤5m
1080P/AWG 26 ≤10m
Output cable length 2160P/AWG 26 ≤5m
1080P/AWG 26 ≤10m
DC input specification DC 5V/1A
Max working current 220mA
Working temperature range 0 ~ +40℃
Working humidity range 5 to 85%RH(No Condensation)
Storage temperature -15 to 55℃
Storage humidity 5 ~95%RH(No Condensation)
Size 82×58.5×18.4(mm)
Weight 48g
Accessories Manual, Remote, USB Cable
