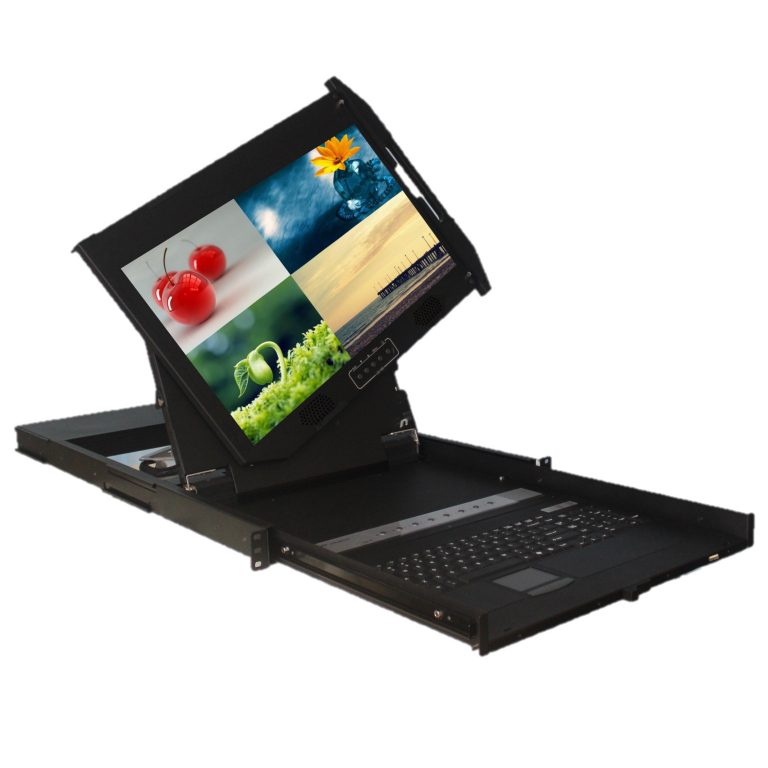

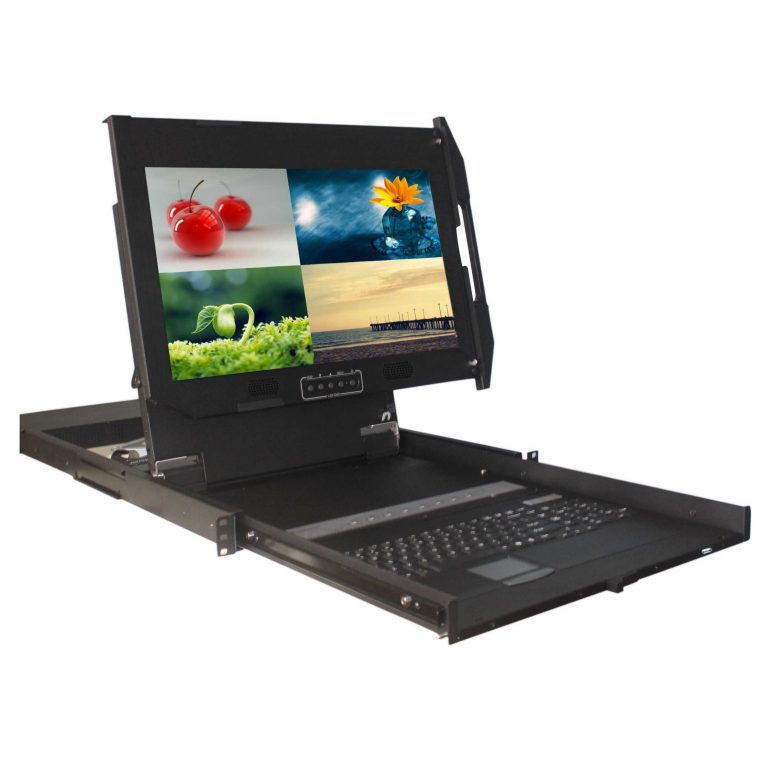

21.5″/ 23.8″ FHD Quad Screen Splitter LCD Console Drawer + 4 ports KVM w/DVI/USB Hub/Audio interface. (Screen Pivot version)
Description
ATZ range of Quad Screen Splitter (QSS ) LCD console drawers represents the latest technology in KVM switching. The key advantage over conventional KVM switches is that it allows you to simultaneously display and administer 4 computers on a single console. It combines KVM features and a digital multi-viewer scaling and converting videos at both inputs and output.
Configured with 21.5 inch A-Grade FHD LCD panels, integrated 4 ports DVI-D/USB/Audio/HUB, support Full screen and Quad screen mode.
The self-locking rails when in the fully extended open position and the ultra convenient auto lock release when the LCD panel is closed, make for simple and hassle free operation.
Features:

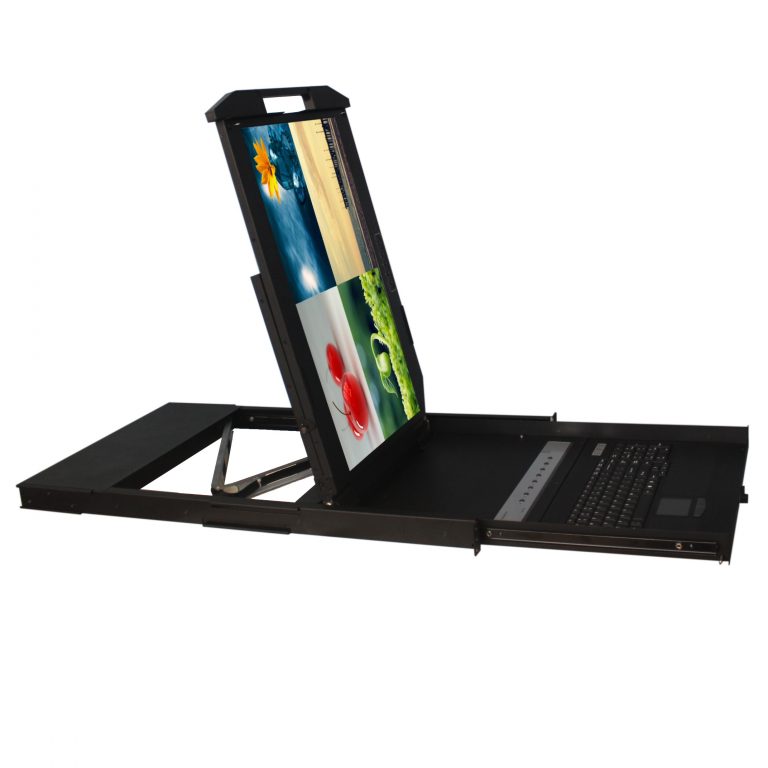

- Facilitated by screen rotate function.
- 1U single rail with 21.5” LCD Monitor,
- Support FHD with 1080p resolution.

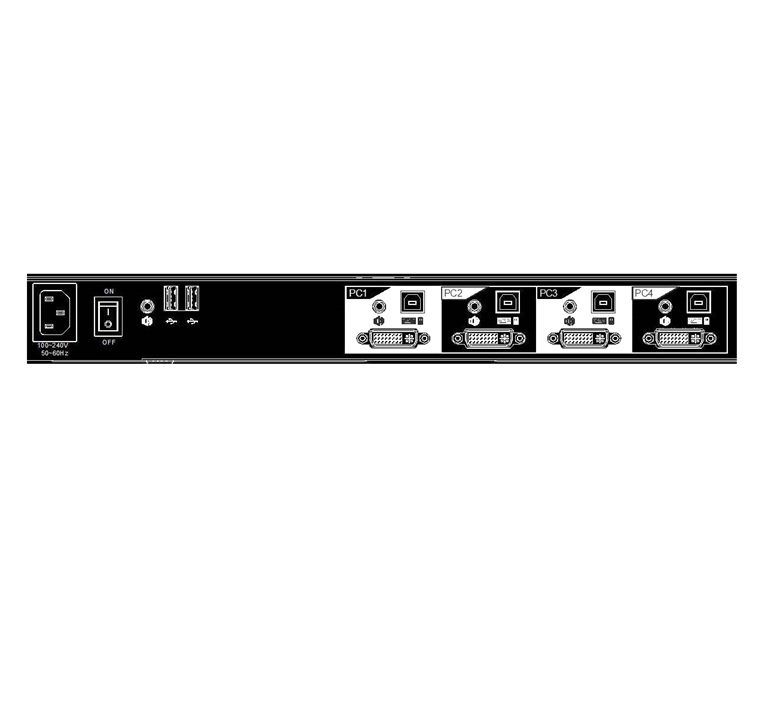

- Four Independent DVI-D/USB/Audio/HUB interface for each PC.
- Support Full screen and Quad screen mode
- On Quad Screen mode, by Mouse moving across screen boundary or via Push Button or Hotkey to switching port
- Front 1x , rear 2x USB 2.0 Type A, Sharing USB peripheral Device for each computer. (Ex, flash disk, hard driver, KB/Mouse)
- Build in 2x 2w stereo speakers.
- Durable 104-key keyboard and touch pad.
- Quick and simple installation.
- Self-locking and auto release rails for ultra convenience.
| Part No. | KVM-2104QSS-PV | |
| Direct no. of Computers | 4 x DVI-D/ USB / Audio & 2x HUB | |
| Maximum no. of Computers | 4 | |
| LCD | Size | 21.5” |
| Backlight | LED | |
| Resolution | 1920*1080 FULL HD | |
| Max.color | 16.7M | |
| Luminance | 250cd/m2 | |
| View Angle (H/V) | 178 / 178 | |
| Contrast Ratio | 3000 : 1 | |
| Port Selection | Mouse moving across screen boundary , Push Button or Hotkey | |
| USB HUB | Front 1x , rear 2x USB 2.0 Type A for USB Peripheral Device | |
| KB/Mouse Emulation | USB | |
| Rack Depth | 600mm to 1200mm ( rack cabinet front rails to rear rails ) | |
| Power | 100-240V AC 50/60Hz via IEC Type power cord | |
| Environment |
Operation temp: 0 to 50℃ Storage temp: -20 to 60℃ Humidity: 10% – 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
|

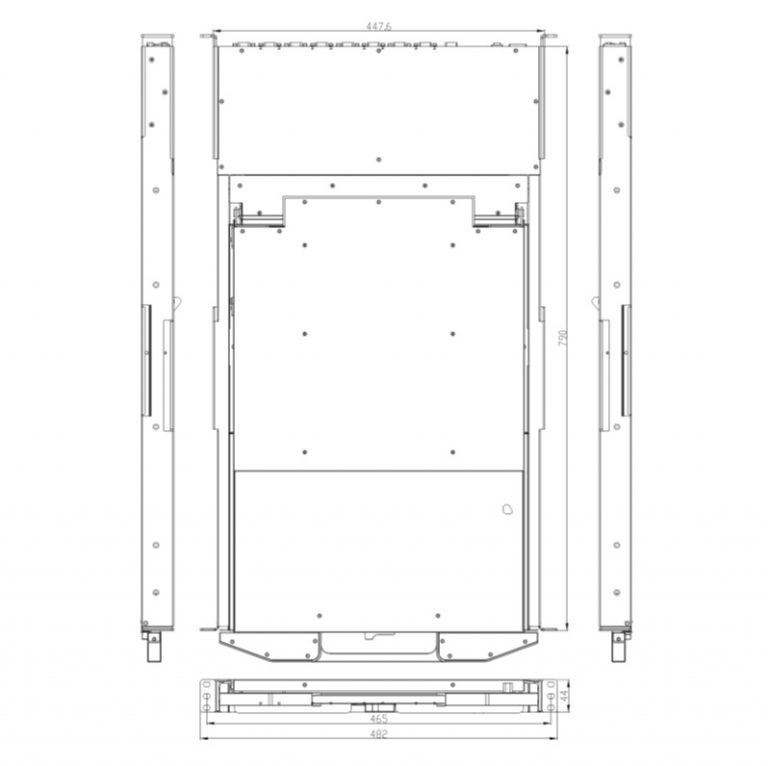

| Physical Dimensions / Net Weights | 448x44x795mm (WxHxD) / 19.5KG | |
| Packing Dimensions / Gross weights | 580x195x940mm (WxHxD) / 23KG | |
| Accessory | ||
| 1x 1.8meter IEC Type Power Cord 4x 1.8meter DVI Cable 4x 1.8meter USB Cable 4x 1.8meter Audio Cable |
||
| Part No. | KVM-2404QSS-PV | |
| Direct no. of Computers | 4 x DVI-D/ USB / Audio & 2x HUB | |
| Maximum no. of Computers | 4 | |
| LCD | Size | 23.8” |
| Backlight | LED | |
| Resolution | 1920*1080 FULL HD | |
| Max. color | 16.7M | |
| Luminance | 250cd/m2 | |
| View Angle (H/V) | 178 / 178 | |
| Contrast Ratio | 1000 : 1 | |
| Port Selection | Mouse moving across screen boundary , Push Button or Hotkey | |
| USB HUB | Front 1x , rear 2x USB 2.0 Type A for USB Peripheral Device | |
| KB/Mouse Emulation | USB | |
| Rack Depth | 600mm to 1200mm ( rack cabinet front rails to rear rails ) | |
| Power | 100-240V AC 50/60Hz via IEC Type power cord | |
| Environment |
Operation temp: 0 to 50℃ Storage temp: -20 to 60℃ Humidity: 10% – 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
|
| Physical Dimensions / Net Weights | 448x44x795mm (WxHxD) / 19.5KG | |
| Packing Dimensions / Gross weights | 580x195x940mm (WxHxD) / 23KG | |
| Accessory | ||
| 1x 1.8meter IEC Type Power Cord 4x 1.8meter DVI Cable 4x 1.8meter USB Cable 4x 1.8meter Audio Cable |
||
