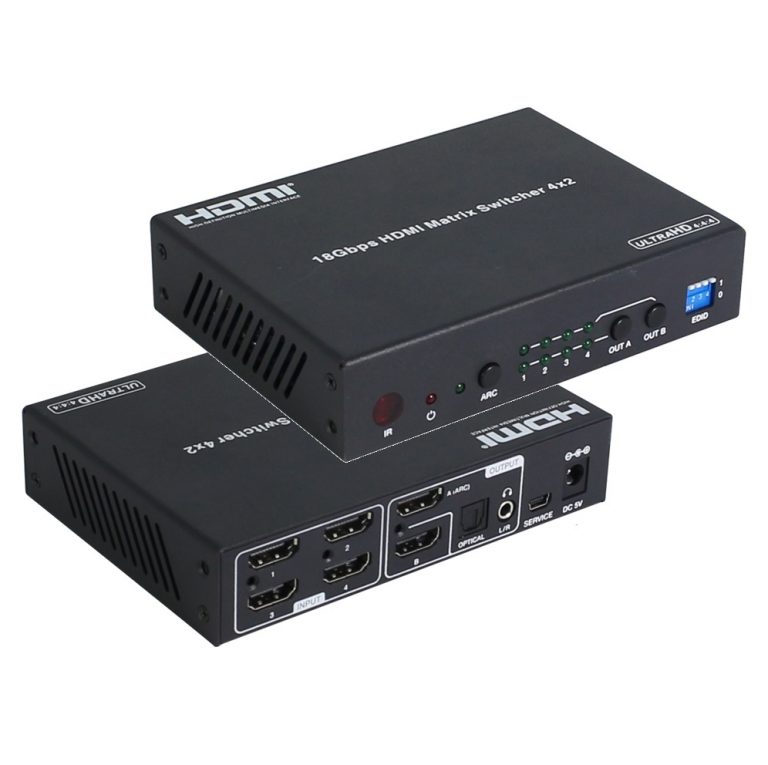

The 4×2 HDMI 2.0 Matrix Switcher simultaneously routes four HDMI sources to two HDMI Displays. It supports up to 4K2K@60Hz YCbCR 4:4:4 and HDCP 2.2.
Output A supports audio de-embedding to optical and analog L/R outputs. Output B can support 4K to 1080P downscale function automatically if source is 4K but TV only supports up to 1080P. 16 different EDID configurations can meet most of use cases. Flexible control through on-panel buttons or IR control.
Features:
- HDMI 2.0b, HDCP 2.2 / HDCP 1.4 compliant
- Up to 4K2K@60Hz (4:4:4) on all HDMI ports
- Supports pass-through audio up to 7.1 channels of High Deifinition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
- Out A audio de-embedding to optical and analog L/R out
- Out B supports 4K to 1080P downscale automatically
- HDR, Smart EDID management
- Control is via on-panel Button and IR
– HDMI Compliance : HDMI 2.0b
– HDCP Compliance : HDCP 2.2 and HDCP 1.4
– Video Resolutions : 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz, All HDMI 3D TV Format
– Color Space : RGB, YCbCr 4:4:4, YCbCr 4:2:2
– HDMI Audio Formats : PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD
– L/R Audio Formats : Analog stereo 2CH
– Optical Audio Formats : LPCM 2.0 CH, LPCM 5.1, Dolby Digital 2/5 1 CH, DTS 2/5.1 CH
– ESD Protection : Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

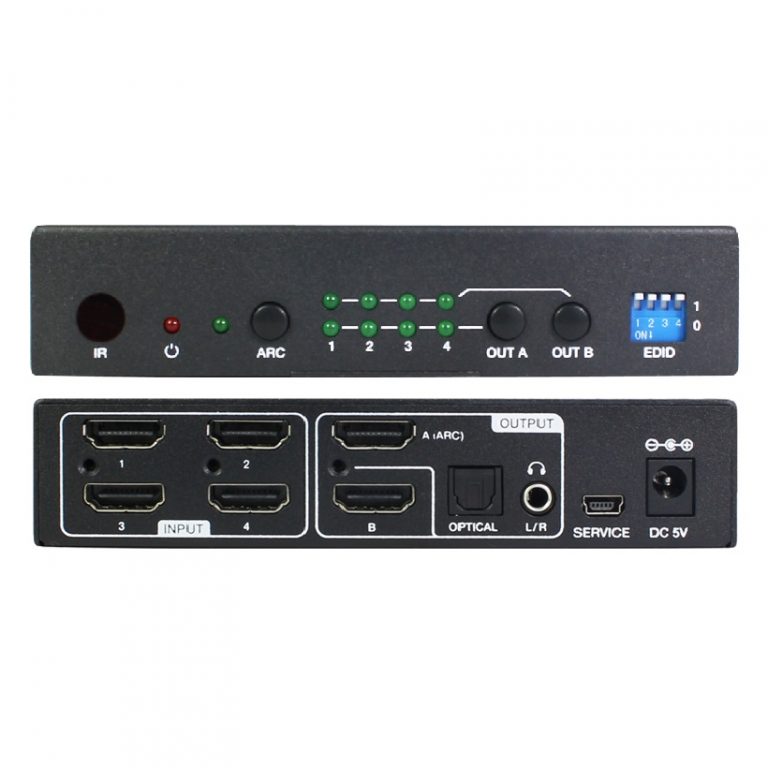

– Connections Input ports : 4×HDMI Type A [19-pin female], 1×IR Receiver Window
– Connections Output ports 2×HDMI Type A [19-pin female], 1×L/R Audio out [3.5mm Stereo Mini-jack], 1×Optical out [S/PDIF]
– Housing : Metal Enclosure
– Color : Black
– Dimensions : 130mm(W)×94.2mm(D)×28mm(H)
– Weight : 363
– Power Supply: Input – AC100~240V 50/60Hz, Output- DC5V/1A (US/EU standards, CE/FCC/UL certified)
– Power Consumption : 3.2W (max)
– Operating Temperature : 0°C ~ 40°C / 32°F ~ 104°F
– Storage Temperature : -20°C ~ 60°C / -4°F ~ 140°F
– Relative Humidity : 20~90% RH (non-condensing)
